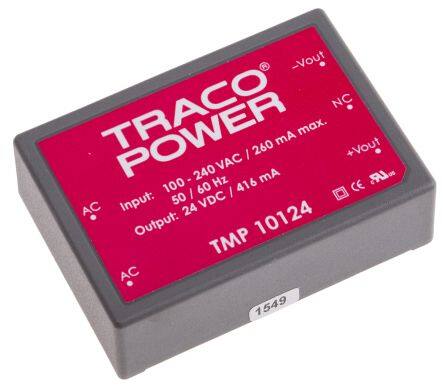

TMP 10124
RoHS
RoHS compliant
RoHS compliantPackage 5-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC CONVERTER 24V 10W
PDF
/
Inventory: 9315
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 45mm
Length 64mm
Technical
Voltage - Input 85V~264VAC 120V~370VDC
Current - Output (Max) 416mA
Trim/Adjustable Output NO
Input Voltage-Nom 100V
Voltage - Output 1 24V
Output Voltage 24V
Efficiency 76%
Approval Agency CB, CE, cULus, cURus
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-PDMA-P5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form PIN/PEG
Terminal Position DUAL
Technology HYBRID
Subcategory Power Supply Modules
Power (Watts) 10W
Applications ITE (Commercial)
Type Enclosed
ECCN Code EAR99
Number of Terminations 5
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Universal Input
Size / Dimension 2.52Lx1.77W x 0.76 H 64.0mmx45.0mmx19.2mm
Series TMP (10W)
Published 2010
Operating Temperature -25°C~50°C
Physical
Surface Mount NO
Package / Case 5-DIP Module
Mounting Type Through Hole
Supply Chain
Factory Lead Time 11 Weeks
