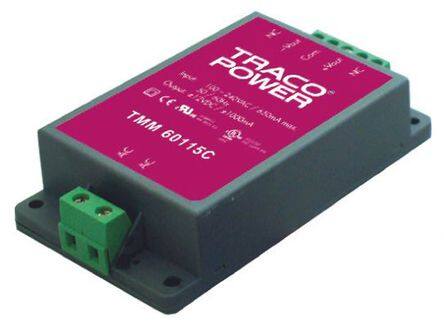

TMM 60124C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 60W
PDF
/
Buying Options
Total Price: USD $96.85
Unit Price: USD $96.8528
≥1 USD $96.8528
≥10 USD $90.89432
≥100 USD $87.914464
≥500 USD $84.934256
≥1000 USD $81.954048
≥3000 USD $73.766
Inventory: 75
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -40°C~75°C With Derating
Published 2014
Series TMM 60 (60W)
Size / Dimension 4.41Lx2.57W x 1.50 H 112.0mmx65.3mmx38.1mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
ECCN Code EAR99
Type Enclosed
Applications Industrial, ITE (Commercial), Medical
Power (Watts) 60W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code R-PXMA-X7
Number of Outputs 1
Approval Agency CB, CE, cULus, cURus
Efficiency 87%
Voltage - Isolation 4kV
Output Voltage 24V
Voltage - Output 1 24V
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Current - Output (Max) 2.5A
Voltage - Input 85V~264VAC 120V~370VDC
Total Power Output-Max 60W
Minimum Load Required No
Compliance
RoHS Status ROHS3 Compliant
