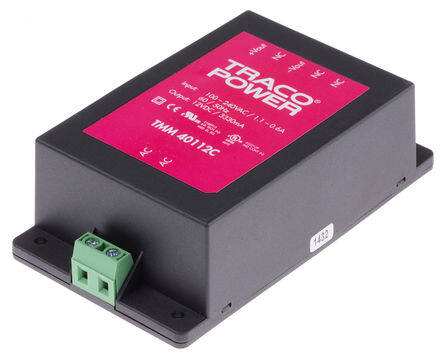

TMM 40112C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 40W
PDF
/
Buying Options
Total Price: USD $94.62
Unit Price: USD $94.62285
≥1 USD $94.62285
≥10 USD $89.26684
≥100 USD $84.214
≥500 USD $79.44717
≥1000 USD $74.95016
Inventory: 7360
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Minimum Load Required No
Total Power Output-Max 40W
Voltage - Input 85V~264VAC 120V~370VDC
Current - Output (Max) 3.33A
Trim/Adjustable Output NO
Input Voltage-Nom 100V
Voltage - Output 1 12V
Output Voltage 12V
Voltage - Isolation 4kV
Efficiency 84%
Approval Agency CB, CE, cULus, cURus
Number of Outputs 1
JESD-30 Code R-PXFM-X7
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 40W
Applications Industrial, ITE (Commercial), Medical
Type Enclosed
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 4.41Lx2.51W x 1.34 H 112.0mmx63.8mmx34.0mm
Series TMM 40 (40W)
Published 2014
Operating Temperature -40°C~80°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 11 Weeks
