TMM 24115C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

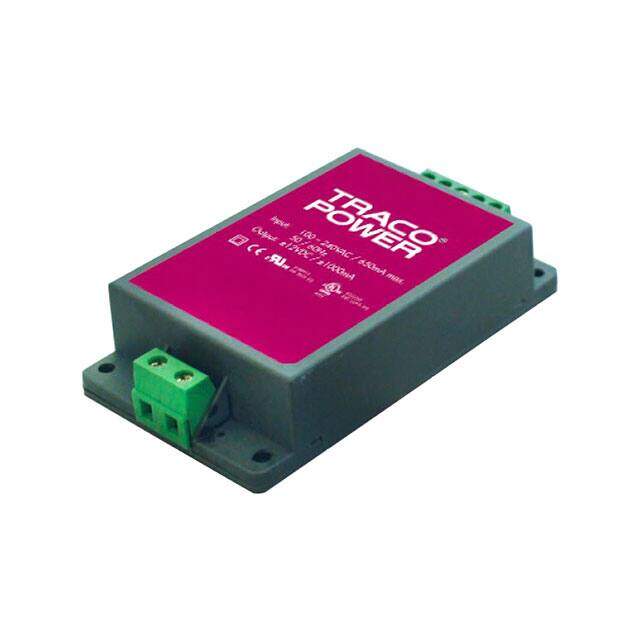

AC/DC CONVERTER 15V 24W
PDF
/
Buying Options
Total Price: USD $70.8
Unit Price: USD $70.8048
≥1 USD $70.8048
≥10 USD $66.51216
≥100 USD $64.36672
≥500 USD $62.22128
≥1000 USD $60.075752
≥3000 USD $53.108
Inventory: 82
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Minimum Load Required No
Total Power Output-Max 24W
Voltage - Input 85V~264VAC 120V~370VDC
Current - Output (Max) 1.6A
Trim/Adjustable Output NO
Input Voltage-Nom 100V
Voltage - Output 1 15V
Output Voltage 15V
Voltage - Isolation 4kV
Efficiency 82%
Approval Agency CB, CE, cULus, cURus
Number of Outputs 1
JESD-30 Code R-PXFM-X7
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 24W
Applications Industrial, ITE (Commercial), Medical
Type Enclosed
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 3.78Lx2.13W x 0.92 H 96.0mmx54.1mmx23.4mm
Series TMM 24 (24W)
Published 2014
Operating Temperature -40°C~80°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 11 Weeks
