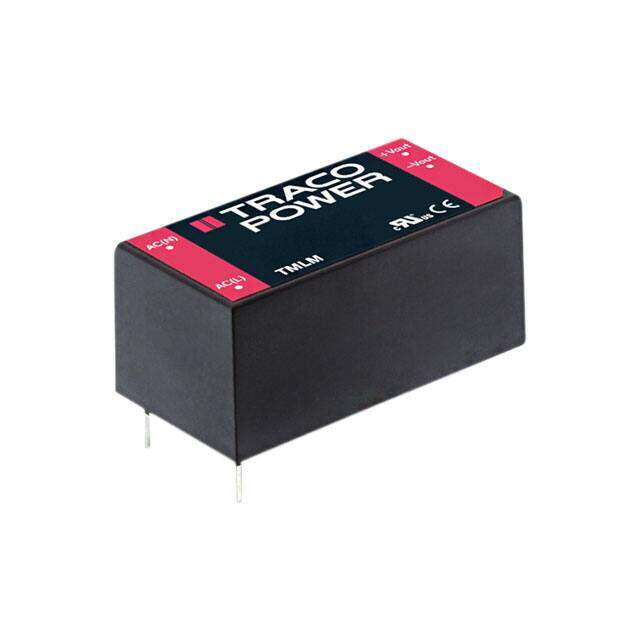

TMLM 10103
RoHS
RoHS compliant
RoHS compliantPackage 4-DIP Module
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC CONVERTER 3.3V 8.3W
PDF
/
Inventory: 955
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case 4-DIP Module
Surface Mount NO
Technical
Operating Temperature -25°C~60°C With Derating
Published 2012
Series TMLM (10W)
Size / Dimension 2.06Lx1.07W x 0.93 H 52.4mmx27.2mmx23.5mm
Feature Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 4
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 8.3W
Subcategory Power Supply Modules
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P4
Number of Outputs 1
Qualification Status Not Qualified
Approval Agency CE, cURus
Efficiency 74%
Output Voltage 3.3V
Voltage - Output 1 3.3V
Input Voltage-Nom 100V
Trim/Adjustable Output NO
Current - Output (Max) 2.5A
Voltage - Input 90V~264VAC 120V~370VDC
Total Power Output-Max 8.2W
Dimensions
Height Seated (Max) 24mm
Length 52.4mm
Width 27.2mm
Compliance
RoHS Status ROHS3 Compliant
