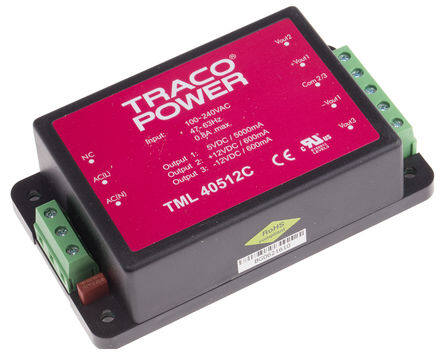

TML 40512C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V +/-12V 39W
PDF
/
Buying Options
Total Price: USD $101.13
Unit Price: USD $101.1296
≥1 USD $101.1296
≥10 USD $94.90624
≥100 USD $91.794912
≥500 USD $88.683056
≥1000 USD $85.571464
≥3000 USD $77.022
Inventory: 48
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Minimum Load Required Yes
Voltage - Output 3 -12V
Total Power Output-Max 40W
Voltage - Output 2 12V
Voltage - Input 90V~264VAC 100V~375VDC
Current - Output (Max) 5A 600mA 600mA
Trim/Adjustable Output NO
Input Voltage-Nom 115V
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 84%
Approval Agency CB, CE, cURus
Number of Outputs 3
JESD-30 Code R-PXMA-X8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Additional Feature ALSO HAS OUTPUT VOLTAGE -12 V AND 12 V
Power (Watts) 39W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 4.41Lx2.50W x 1.28 H 112.0mmx63.5mmx32.5mm
Series TML (40W)
Published 2008
Operating Temperature -40°C~60°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 10 Weeks
