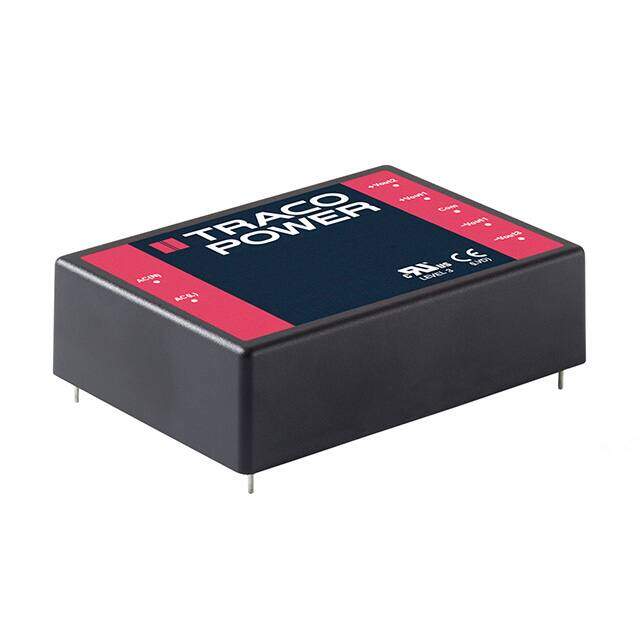

TML 40254
RoHS
RoHS compliant
RoHS compliantPackage 8-DIP Module, 6 Leads
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC CONVERTER 5V 24V 40W
PDF
/
Buying Options
Total Price: USD $78.91
Unit Price: USD $78.91043
≥1 USD $78.91043
≥10 USD $74.4438
≥100 USD $70.23
Inventory: 56
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Through Hole
Package / Case 8-DIP Module, 6 Leads
Surface Mount NO
Technical
Operating Temperature -40°C~60°C With Derating
Published 2007
Series TML (40W)
Size / Dimension 3.52Lx2.52W x 0.98 H 89.5mmx64.1mmx25.0mm
Feature Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 40W
Technology HYBRID
Terminal Position DUAL
Terminal Form PIN/PEG
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PDMA-P7
Number of Outputs 2
Approval Agency CB, CE, cURus
Efficiency 84%
Output Voltage 5V
Voltage - Output 1 5V
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Current - Output (Max) 5A 625mA
Voltage - Input 90V~264VAC 100V~375VDC
Voltage - Output 2 24V
Total Power Output-Max 40W
Dimensions
Length 89mm
Width 63.5mm
Compliance
RoHS Status ROHS3 Compliant
