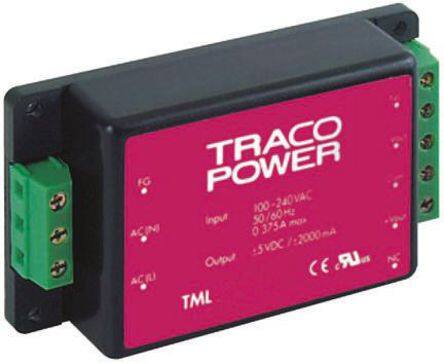

TML 20512C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V +/-12V 20W
PDF
/
Buying Options
Total Price: USD $69.19
Unit Price: USD $69.1944
≥1 USD $69.1944
Inventory: 1121
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Mounting Type Chassis Mount
Surface Mount NO
Technical
Operating Temperature -25°C~70°C With Derating
Published 2008
Series TML (20W)
Size / Dimension 3.78Lx2.15W x 1.09 H 96.0mmx54.6mmx27.7mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 8
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 20W
Additional Feature ALSO HAS OUTPUT VOLTAGE -12 V AND 12 V
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PXMA-X8
Number of Outputs 3
Approval Agency CB, CE, cURus
Efficiency 84%
Voltage - Isolation 3kV
Output Voltage 5V
Voltage - Output 1 5V
Input Voltage-Nom 115V
Minimum Load Required Yes
Voltage - Output 3 -12V
Total Power Output-Max 20W
Voltage - Output 2 12V
Voltage - Input 90V~264VAC 100V~375VDC
Current - Output (Max) 2.8A 250mA 250mA
Trim/Adjustable Output NO
Compliance
RoHS Status ROHS3 Compliant
