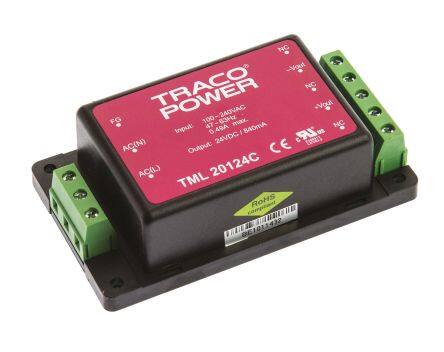

TML 20124C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 20W
PDF
/
Buying Options
Total Price: USD $58.04
Unit Price: USD $58.0448
≥1 USD $58.0448
≥10 USD $54.52656
≥100 USD $52.767968
≥500 USD $51.0092
≥1000 USD $49.250168
≥3000 USD $43.538
Inventory: 1177
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Ripple Voltage (Main Out) 0.258Vrms
Minimum Load Required No
Total Power Output-Max 20W
Protections OUTPUT OVER VOLTAGE
Voltage - Input 90V~264VAC 100V~375VDC
Current - Output (Max) 840mA
Trim/Adjustable Output NO
Input Voltage-Nom 115V
Voltage - Output 1 24V
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 84%
Approval Agency CB, CE, cURus
Number of Outputs 1
JESD-30 Code R-PXMA-X8
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 20W
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 8
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, Universal Input
Size / Dimension 3.78Lx2.15W x 1.09 H 96.0mmx54.6mmx27.7mm
Series TML (20W)
Published 2008
Operating Temperature -25°C~70°C With Derating
Physical
Surface Mount NO
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 10 Weeks
Alternative Model
