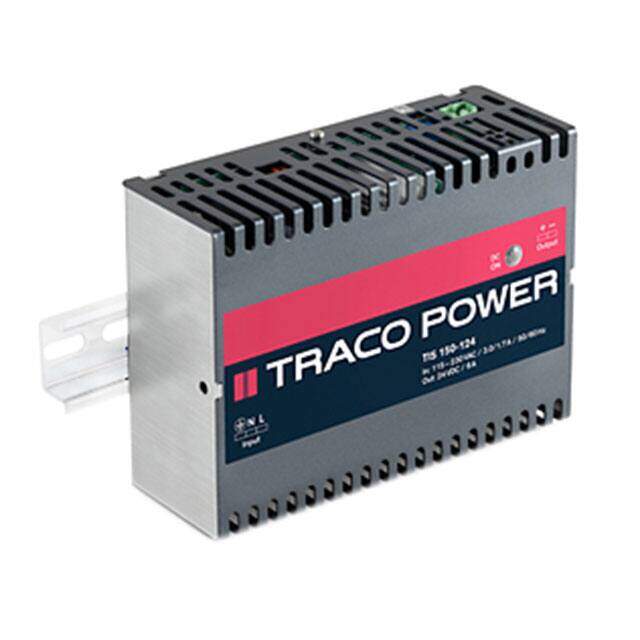

TIS 150-124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 144W
PDF
/
Buying Options
Total Price: USD $301.02
Unit Price: USD $301.022055
≥1 USD $301.022055
≥10 USD $283.983068
≥100 USD $267.908556
≥500 USD $252.743917
≥1000 USD $238.437657
Inventory: 1125
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type DIN Rail
Surface Mount NO
Technical
Operating Temperature -25°C~70°C With Derating
Published 1999
Series TIS (150W)
Size / Dimension 6.18Lx2.23W x 4.51 H 157.0mmx56.6mmx114.6mm
Feature Adjustable Output, IP20
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 5
ECCN Code EAR99
Type Enclosed
Applications Hazardous Locations, Industrial, ITE (Commercial)
Power (Watts) 144W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-X5
Number of Outputs 1
Approval Agency CB, CE, cCSAus, cULus, cURus
Efficiency 85%
Output Voltage 24V
Voltage - Output 1 24V
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Current - Output (Max) 6A
Voltage - Input 93V~132VAC 187V~264VAC
Compliance
RoHS Status ROHS3 Compliant
