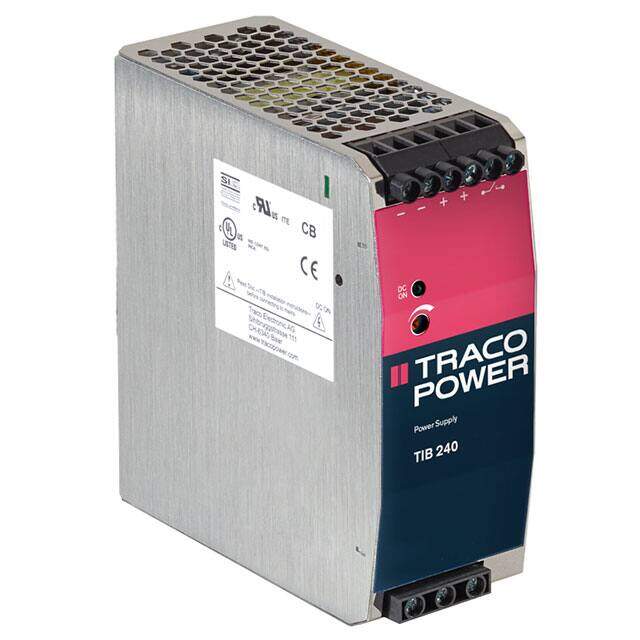

TIB 240-124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 240W
PDF
/
Buying Options
Total Price: USD $132.95
Unit Price: USD $132.95156
≥1 USD $132.95156
≥10 USD $125.426
≥100 USD $118.32642
Inventory: 88
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type DIN Rail
Surface Mount NO
Technical
Operating Temperature -40°C~70°C With Derating
Published 2017
Series TIB 240 (240W)
Size / Dimension 4.50Lx1.89W x 4.89 H 114.2mmx48.0mmx124.2mm
Feature Adjustable Output, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 11
ECCN Code EAR99
Type Enclosed
Applications Industrial, ITE (Commercial)
Power (Watts) 240W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Outputs 1
Approval Agency CB, CE, cULus, cURus, SIQ
Efficiency 94.5%
Voltage - Isolation 4.25kV
Output Voltage 24V
Voltage - Output 1 24V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Current - Output (Max) 10A
Voltage - Input 85V~264VAC
Total Power Output-Max 240W
Compliance
RoHS Status ROHS3 Compliant
