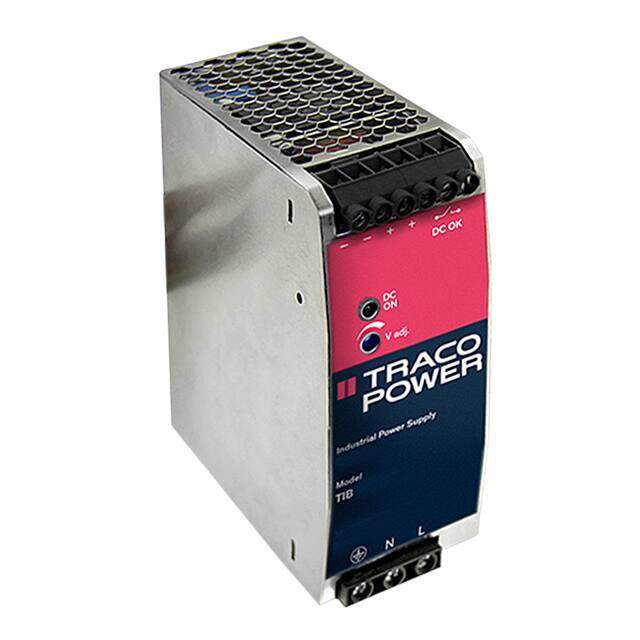

TIB 080-124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 82W
PDF
/
Buying Options
Total Price: USD $72.53
Unit Price: USD $72.52626
≥1 USD $72.52626
≥10 USD $68.421
≥100 USD $64.54811
Inventory: 118
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Mounting Type DIN Rail
Surface Mount NO
Technical
Operating Temperature -40°C~70°C With Derating
Published 2017
Series TIB 080 (80W)
Size / Dimension 3.71Lx1.26W x 4.50 H 94.2mmx32.0mmx114.2mm
Feature Adjustable Output, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 9
ECCN Code EAR99
Type Enclosed
Applications Industrial, ITE (Commercial)
Power (Watts) 82W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-XXMA-X9
Number of Outputs 1
Approval Agency CB, CE, cULus, cURus, SIQ
Efficiency 90%
Voltage - Isolation 4.25kV
Output Voltage 24V
Voltage - Output 1 24V
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Current - Output (Max) 3.4A
Voltage - Input 85V~264VAC
Total Power Output-Max 80W
Compliance
RoHS Status ROHS3 Compliant
