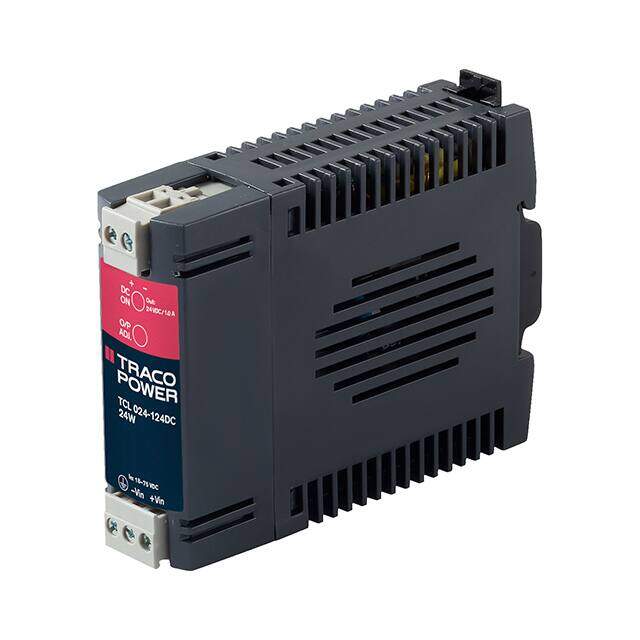

TCL 024-124
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 24W
PDF
/
Buying Options
Total Price: USD $73.19
Unit Price: USD $73.19355
≥1 USD $73.19355
≥10 USD $69.05052
≥100 USD $65.142
Inventory: 98
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
Total Power Output-Max 24W
Voltage - Input 85V~264VAC 85V~375VDC
Current - Output (Max) 1A
Trim/Adjustable Output YES
Voltage - Output 1 24V
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 88%
Approval Agency CB, CE, cCSAus, cULus, cURus
Number of Outputs 1
JESD-30 Code R-PXMA-X6
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Power (Watts) 24W
Applications Industrial, ITE (Commercial)
Type Enclosed
ECCN Code EAR99
Number of Terminations 6
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, IP20
Size / Dimension 3.94Lx1.06W x 2.95 H 100.1mmx26.9mmx74.9mm
Series TCL (24W)
Published 2007
Operating Temperature -10°C~70°C With Derating
Physical
Surface Mount NO
Mounting Type DIN Rail
Supply Chain
Factory Lead Time 6 Weeks
