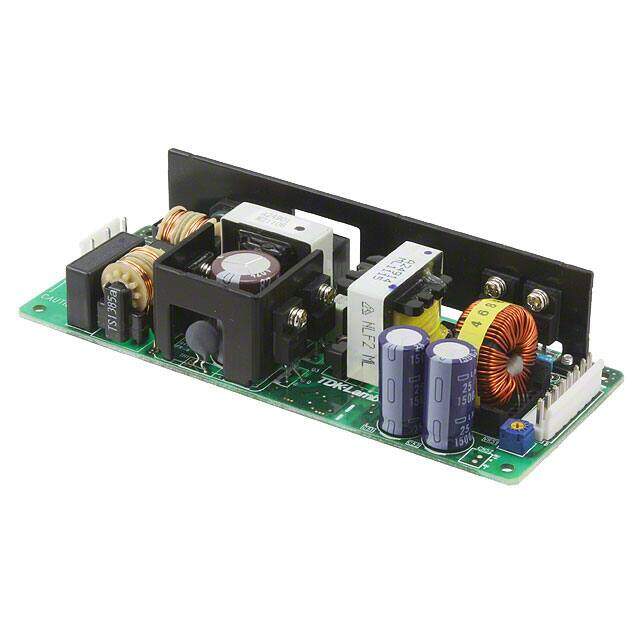

ZWS75BAF48 image
Favorite
ZWS75BAF48 image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description TDK LAMBDA ZWS-75BAF-48 AC/DC Open Frame Power Supply, Switch Mode, Adjustable, Fixed, 1 Output, 85 V, 265 V, 76.8 W, 48 V
PDF
/
Inventory: 4747
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 17 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)

Physical

Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Weight 230g

Technical

Operating Temperature -10°C~70°C With Derating
Published 2010
Series ZWS75BAF (75W)
Size / Dimension 5.90Lx1.97W x 1.30 H 150.0mmx50.0mmx33.0mm
Feature Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Power Rating 76.8W
Max Power Dissipation 75W
Depth 50mm
Number of Outputs 1
Approval Agency CE
Efficiency 85%
Voltage - Isolation 3kV
Output Voltage 48V
Max Output Current 1.6A
Voltage - Input 85V~265VAC
Output Current 1.6A
Output Power 77W
Min Input Voltage 85V
Max Input Voltage 265V
Current - Output 1 1.6A
Max Output Power 76.8W
Nominal Output Voltage 48V
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 265V

Dimensions

Height 33.02mm

Compliance

Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
