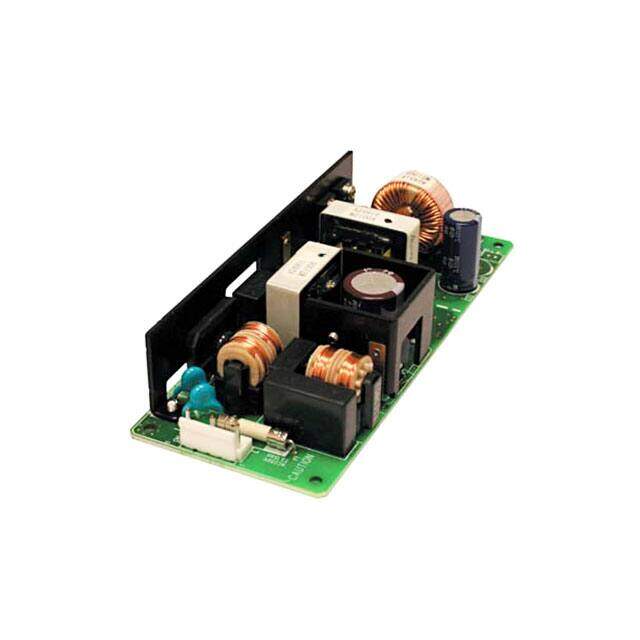

ZWS75BAF-5/L
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switching Power Supplies 5V 15A, 75W W/ L bracket case
PDF
/
Inventory: 4977
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Number of Pins 18
Weight 229.999993g
Technical
Operating Temperature -10°C~70°C With Derating
Published 2011
Series ZWS75BAF (75W)
Size / Dimension 5.90Lx1.97W x 1.30 H 150.0mmx50.0mmx33.0mm
Feature Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Power Rating 75W
Max Power Dissipation 75W
Reach Compliance Code unknown
Number of Outputs 1
Approval Agency CE
Efficiency 84%
Voltage - Isolation 3kV
Output Voltage 5V
Max Output Current 15A
Voltage - Output 1 5V
Voltage - Input 85V~265VAC
Output Current 15A
Output Power 75W
Dimensions
Height 33.02mm
Compliance
RoHS Status RoHS Compliant
