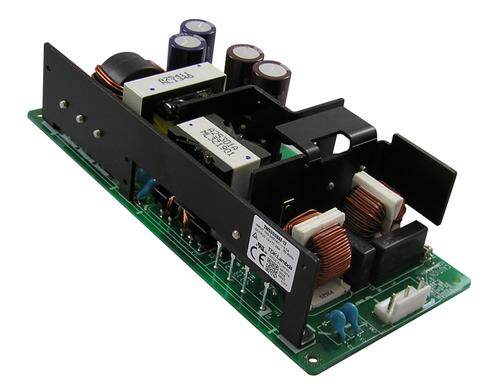

ZWS300BAF48/CO2

TDK-Lambda Americas Inc.
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description Switching Power Supplies 302W 48Vout 6.3A PCB Coating
PDF
/
Inventory: 3742
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 84mm
Height 41.91mm

Technical

Ripple Voltage (Main Out) 0.08484Vrms
Current - Output 1 6.3A
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 302W
Voltage - Input 85V~265VAC
Voltage - Output 1 48V
Max Output Current 6.3A
Output Voltage 48V
Voltage - Isolation 3kV
Efficiency 88%
Approval Agency CE, cURus, TUV
Number of Outputs 1
Max Power Dissipation 300W
Subcategory Power Supply Modules
Power (Watts) 300W 336W Forced Air
Applications ITE (Commercial)
Type Open Frame, Conformal Coated
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Size / Dimension 7.09Lx3.31W x 1.65 H 180.0mmx84.0mmx42.0mm
Series ZWS300BAF (300W)
Published 2012
Operating Temperature -10°C~70°C With Derating

Physical

Weight 539.77492g
Mounting Type Chassis Mount
Mount Chassis Mount, Panel

Supply Chain

Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Factory Lead Time 17 Weeks
