ZWS300BAF15
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

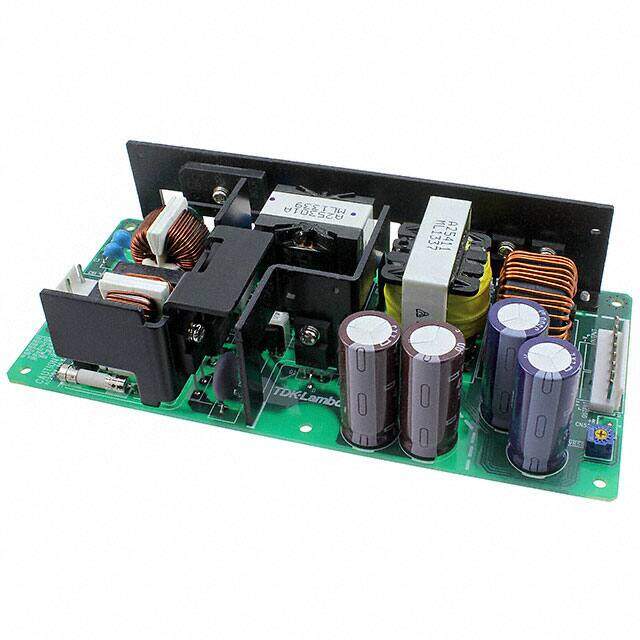

TDK LAMBDA ZWS300BAF15 AC/DC CONVERTER, 300W, 15V, 20A
PDF
/
Buying Options
Total Price: USD $188.56
Unit Price: USD $188.563601
≥1 USD $188.563601
≥10 USD $177.89019
≥100 USD $167.820937
≥500 USD $158.321636
≥1000 USD $149.360033
Inventory: 1254
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Height 41.91mm
Technical
Max Input Voltage (AC) 265V
Min Input Voltage (AC) 85V
Nominal Output Voltage 15V
Max Output Power 300W
Current - Output 1 22A
Max Input Voltage 265V
Min Input Voltage 85V
Output Power 338W
Voltage - Input 85V~265VAC
Max Current Rating 3.7A
Max Output Current 20A
Output Voltage 15V
Voltage - Isolation 3kV
Efficiency 89%
Approval Agency CE, cURus, TUV
Number of Outputs 1
Max Power Dissipation 300W
Power (Watts) 300W 336W Forced Air
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Size / Dimension 7.09Lx3.31W x 1.65 H 180.0mmx84.0mmx42.0mm
Series ZWS300BAF (300W)
Published 2014
Operating Temperature -10°C~70°C With Derating
Physical
Weight 539.77492g
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Factory Lead Time 17 Weeks
