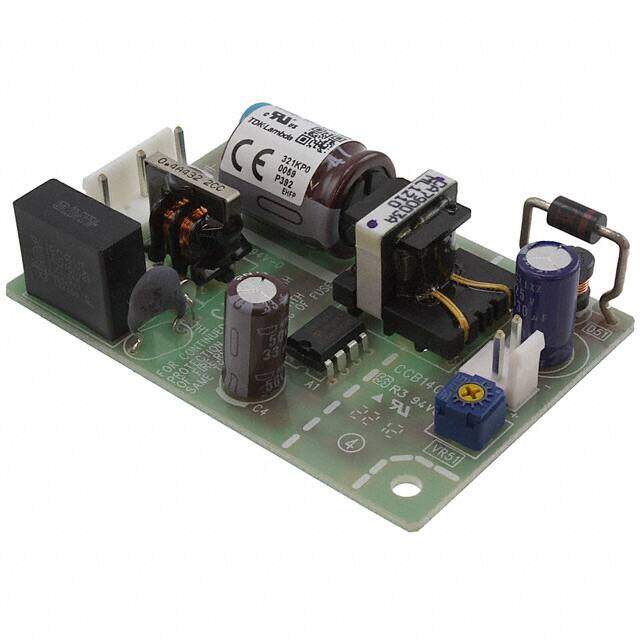

ZWS10B12
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 10W
PDF
/
Inventory: 6489
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -10°C~70°C With Derating
Published 2012
Series ZWS10B (10W)
Size / Dimension 4.14Lx1.97W x 0.83 H 105.1mmx50.0mmx21.0mm
Feature Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 10W
Number of Outputs 1
Approval Agency CE
Efficiency 82%
Voltage - Isolation 3kV
Voltage - Output 1 12V
Current - Output (Max) 900mA
Voltage - Input 85V~265VAC
Compliance
RoHS Status RoHS Compliant
