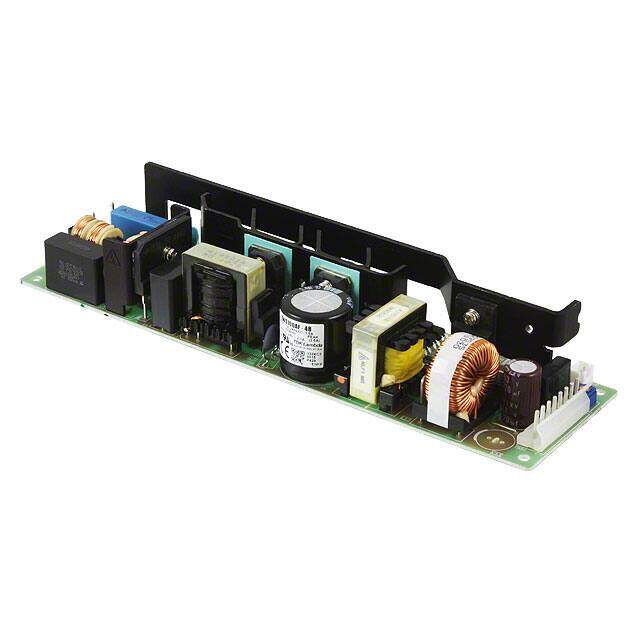

ZWS100AF3
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 3.3V 100W
PDF
/
Inventory: 6921
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 1 month ago)
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Number of Pins 13
Technical
Operating Temperature -10°C~70°C With Derating
Published 2000
Series ZWS-AF (100W)
Size / Dimension 8.74Lx2.44W x 1.38 H 222.0mmx62.0mmx35.0mm
Feature Adjustable Output, DC Input Capable, Load Sharing, PFC, Universal Input
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Power Rating 66W
Max Power Dissipation 100W
Number of Outputs 1
Approval Agency CE
Efficiency 69%
Voltage - Isolation 3kV
Output Voltage 3.3V
Max Output Current 20A
Voltage - Input 85V~265VAC
Output Current 20A
Output Power 66W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 265V
Current - Output 1 20A
Max Output Power 66W
Nominal Output Voltage 3.3V
Ripple Voltage (Main Out) 0.04242Vrms
Dimensions
Height 35mm
Length 222mm
Width 65mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
