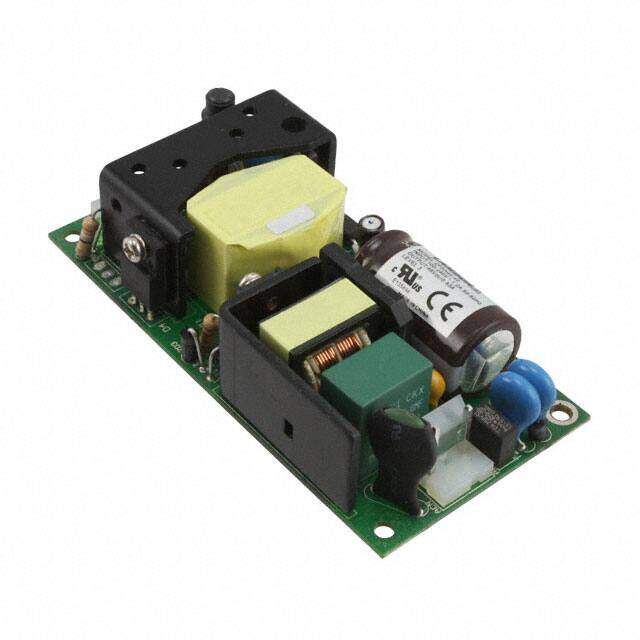

ZPSA409
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 9V 40W
PDF
/
Inventory: 6853
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Width 50.8mm
Height 27.178mm
Technical
Minimum Load Required No
Max Output Power 40W
Current - Output 1 4.45A
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 22W
Output Current 4.45A
Voltage - Input 90V~264VAC
Max Current Rating 1.2A
Max Output Current 4.45A
Output Voltage 9V
Voltage - Isolation 3kV
Efficiency 83%
Approval Agency CE
Number of Outputs 1
Max Power Dissipation 40W
Power Rating 40W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 4.00Lx2.00W x 1.07 H 101.6mmx50.8mmx27.1mm
Series ZPSA40 (40W)
Published 2008
Operating Temperature 0°C~70°C
Physical
Weight 129.999998g
Number of Pins 7
Mounting Type Chassis Mount
Mount Chassis Mount, Panel
Supply Chain
Factory Lead Time 12 Weeks
Alternative Model
