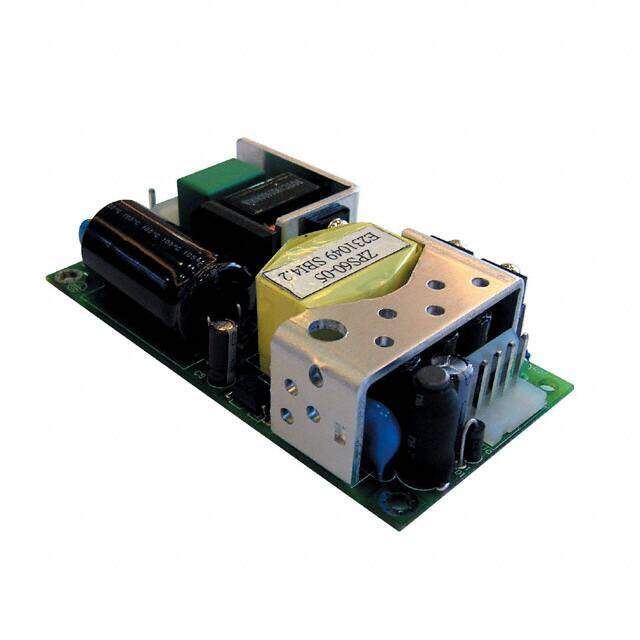

ZPS6012
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 60W
PDF
/
Buying Options
Total Price: USD $51.38
Unit Price: USD $51.377651
≥1 USD $51.377651
≥10 USD $48.469483
≥100 USD $45.725928
≥500 USD $43.137668
≥1000 USD $40.695916
Inventory: 1273
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Number of Pins 4
Weight 170.097139g
Technical
Operating Temperature 0°C~70°C With Derating
Published 2011
Series ZP60 (60W)
Size / Dimension 4.00Lx2.00W x 1.07 H 101.6mmx50.8mmx27.1mm
Feature DC Input Capable, Universal Input
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 7
ECCN Code EAR99
Type Open Frame
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 60W
Max Power Dissipation 60W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 50.8mm
JESD-30 Code R-XXMA-X7
Number of Outputs 1
Approval Agency CE
Efficiency 84%
Voltage - Isolation 3kV
Output Voltage 12V
Max Output Current 5A
Input Voltage-Nom 115V
Trim/Adjustable Output NO
Max Current Rating 1.6A
Voltage - Input 90V~264VAC
Output Current 5A
Output Power 60W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Current - Output 1 5A
Max Output Power 60W
Minimum Load Required No
Nominal Output Voltage 12V
Dimensions
Height 27.178mm
Compliance
REACH SVHC No SVHC
RoHS Status RoHS Compliant
