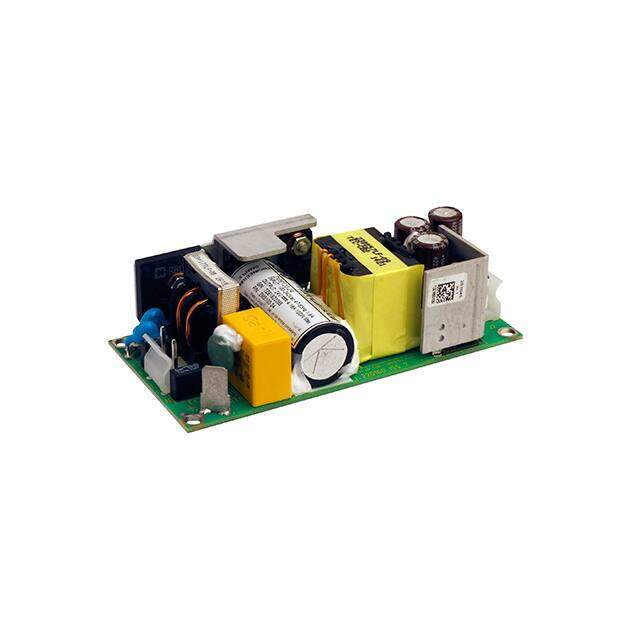

ZMS10024
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 80W
PDF
/
Buying Options
Total Price: USD $54.91
Unit Price: USD $54.909605
≥1 USD $54.909605
≥10 USD $51.801513
≥100 USD $48.869349
≥500 USD $46.103159
≥1000 USD $43.493549
Inventory: 1277
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Weight 149.999992g
Technical
Operating Temperature -20°C~70°C With Derating
Published 2014
Series ZMS100 (100W)
Size / Dimension 4.00Lx2.00W x 1.25 H 101.6mmx50.8mmx31.8mm
Feature Adjustable Output, Universal Input
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 8
ECCN Code EAR99
Type Open Frame
Applications ITE (Commercial), Medical
Power (Watts) 80W 100W Forced Air
Subcategory Power Supply Modules
Max Power Dissipation 80W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 31.9mm
JESD-30 Code R-XXMA-X8
Number of Outputs 1
Approval Agency UL
Efficiency 87%
Voltage - Isolation 4kV
Output Voltage 24V
Max Output Current 3.4A
Input Voltage-Nom 115V
Trim/Adjustable Output YES
Max Current Rating 2A
Voltage - Input 90V~264VAC
Output Power 100.8W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 4.2A
Max Output Power 81.6W
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 264V
Dimensions
Height 31.75mm
Width 50.8mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
