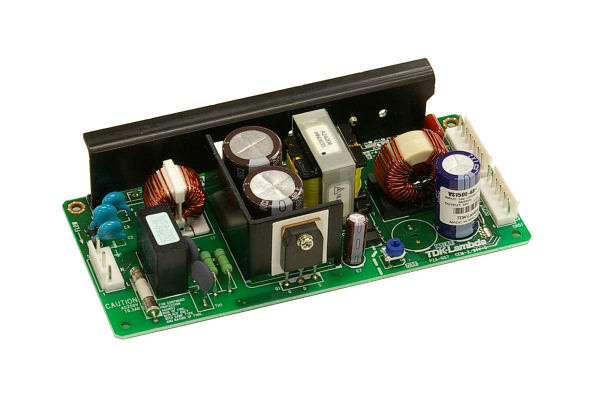

VS150E-24
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC Power Supply Single-OUT 24V 6.3A 151.2W 16-Pin
PDF
/
Inventory: 9788
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mounting Type Chassis Mount
Number of Pins 16
Weight 390g
Technical
Operating Temperature -10°C~70°C
Series VS-E (150W)
Size / Dimension 6.10Lx1.97W x 1.14 H 154.9mmx50.0mmx29.0mm
Part Status Active
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -10°C
Applications ITE (Commercial)
Power (Watts) 150W
Power Rating 151.2W
Depth 65mm
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 87%
Voltage - Isolation 2kV
Output Voltage 24V
Voltage - Output 1 24V
Current - Output (Max) 6.3A
Voltage - Input 85V~132VAC
Output Current 6.3A
Output Power 151.2W
Dimensions
Length 160mm
Width 34mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
Lead Free Lead Free
