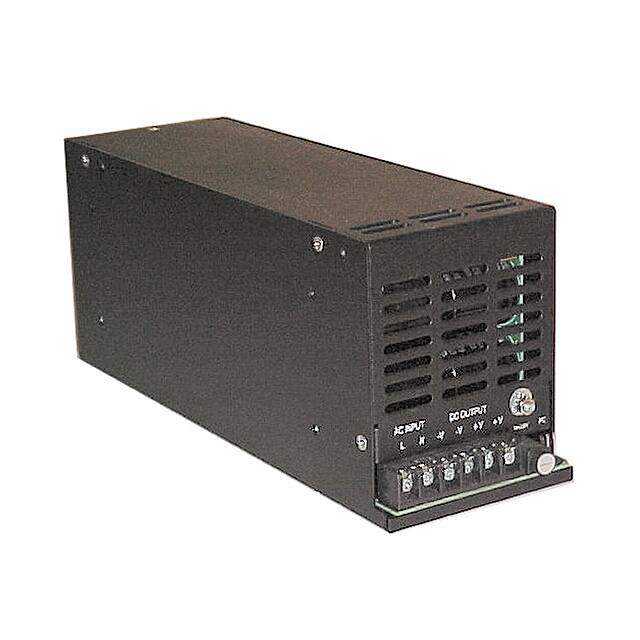

VA-26519
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switching Power Supplies 3000W 360V 8.3A
PDF
/
Buying Options
Total Price: USD $6342.08
Unit Price: USD $6342.076359
≥1 USD $6342.076359
≥200 USD $2530.530724
≥500 USD $2445.969461
≥1000 USD $2404.186419
Inventory: 3577
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Radiation Hardening No
Dimensions
Width 127mm
Length 76.2mm
Height 127mm
Technical
Max Output Power 3kW
Current - Output 1 8.3A
Voltage - Input 115V~230VAC
Current - Output (Max) 50A
Voltage - Output 1 360V
Max Output Current 50A
Output Voltage 360V
Voltage - Isolation 3kV
Efficiency 95%
Approval Agency CE
Number of Outputs 1
Max Power Dissipation 3kW
Power (Watts) 3000W
Applications ITE (Commercial)
Min Operating Temperature -10°C
Max Operating Temperature 50°C
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, Load Sharing, PFC
Size / Dimension 12.00Lx4.00W x 5.00 H 304.8mmx101.6mmx127.0mm
Series VA (3000W)
Published 2007
Operating Temperature -10°C~50°C
Physical
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Factory Lead Time 28 Weeks
Alternative Model
