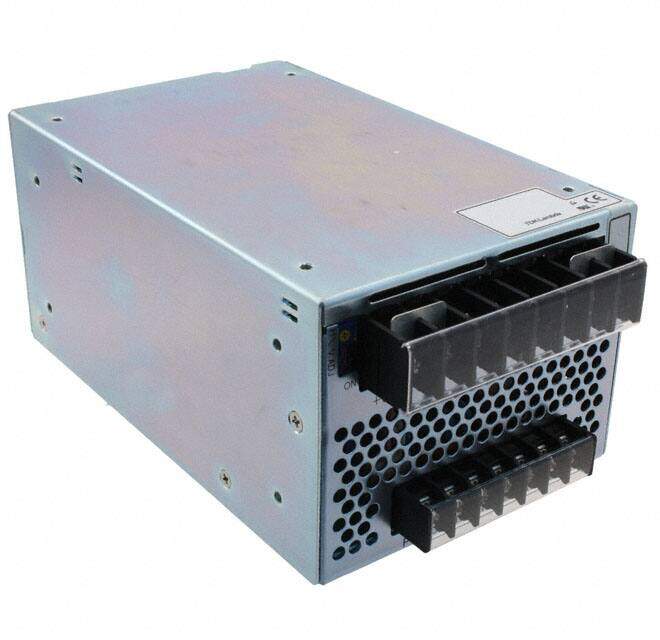

SWS6005
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 5V 600W
PDF
/
Inventory: 1709
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Height 92mm
Technical
Ripple Voltage (Main Out) 0.03535Vrms
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Voltage - Input 85V~265VAC
Current - Output (Max) 100A
Voltage - Output 1 5V
Output Voltage 5V
Voltage - Isolation 3kV
Efficiency 74%
Approval Agency CE, cURus, TUV
Number of Outputs 1
Reach Compliance Code compliant
Subcategory Power Supply Modules
Additional Feature REMOTE SHUTDOWN
Power (Watts) 600W
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Adjustable Output, Load Sharing, PFC, Remote On/Off, Remote Sense, Universal Input
Size / Dimension 7.48Lx3.62W x 4.72 H 190.0mmx91.9mmx119.9mm
Series SWS600 (600W)
Published 2005
Operating Temperature -20°C~74°C With Derating
Physical
Mounting Type Chassis Mount
