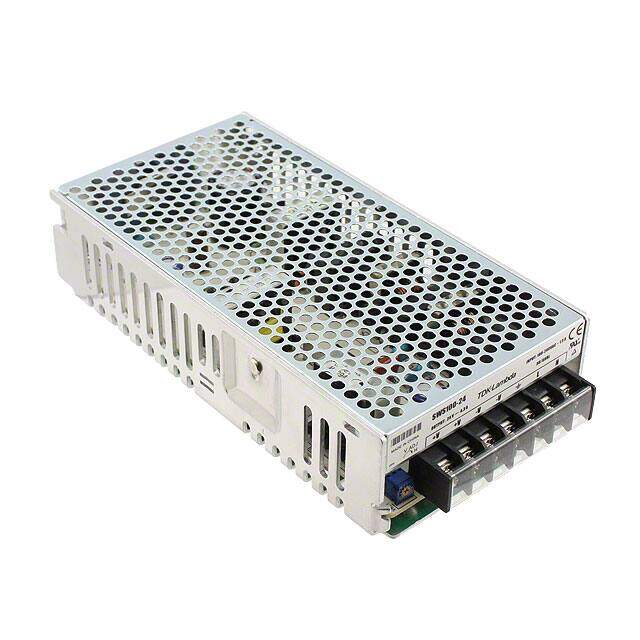

SWS100-3 image
Favorite
SWS100-3 image
Favorite
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description Switching Power Supplies 66W 3.3V 20A
PDF
/
Inventory: 6038
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status RoHS Compliant

Dimensions

Width 96mm
Height 44.958mm

Technical

Current - Output 1 20A
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 66W
Output Current 20A
Voltage - Input 85V~265VAC
Max Current Rating 1.2A
Max Output Current 20A
Output Voltage 3.3V
Voltage - Isolation 3kV
Efficiency 70%
Approval Agency CE, cURus, TUV
Number of Outputs 1
Frequency 60Hz
Max Power Dissipation 100W
Power Rating 100W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Obsolete
Pbfree Code yes
Feature Adjustable Output, PFC, Universal Input
Size / Dimension 7.40Lx3.78W x 1.77 H 188.0mmx96.0mmx45.0mm
Series SWS (100W)
Published 2004
Operating Temperature -20°C~74°C With Derating

Physical

Weight 600.102706g
Number of Pins 7
Mounting Type Chassis Mount
Mount Chassis Mount, Panel

Supply Chain

Lifecycle Status OBSOLETE (Last Updated: 2 months ago)
