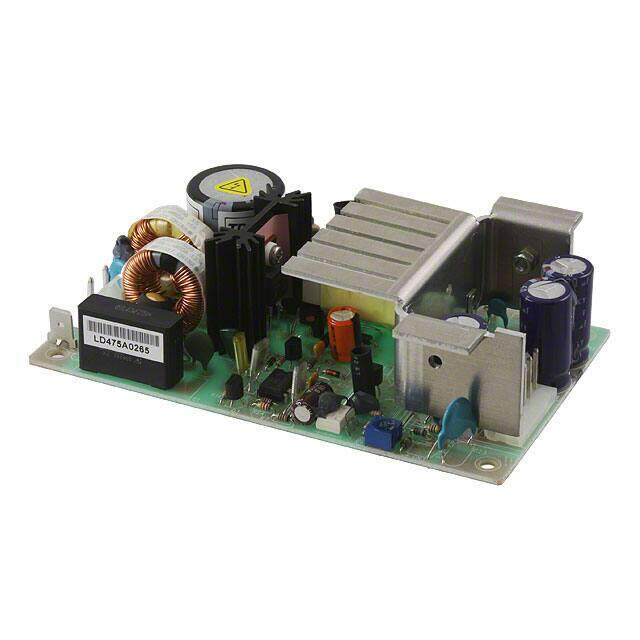

SCD601515
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER +/-15V 60W
PDF
/
Inventory: 966
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Chassis Mount, Screw
Mounting Type Chassis Mount
Number of Pins 12
Weight 249.999986g
Technical
Operating Temperature 0°C~70°C With Derating
Published 2004
Series SC60 (60W)
Size / Dimension 5.00Lx3.00W x 1.34 H 127.0mmx76.2mmx34.0mm
Feature Adjustable Output, Universal Input
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 11
ECCN Code EAR99
Type Open Frame
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 60W
Max Power Dissipation 60W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 76.2mm
JESD-30 Code R-XXMA-X11
Number of Outputs 2
Approval Agency CE
Efficiency 70%
Output Voltage 15V
Max Output Current 1.8A
Input Voltage-Nom 230V
Trim/Adjustable Output YES
Current - Output (Max) 2.2A 1.8A
Voltage - Input 85V~265VAC
Output Current 2.2A
Output Power 60W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Output 2 -15V
Min Input Voltage 85V
Max Input Voltage 265V
Current - Output 1 2.2A
Max Output Power 60W
Minimum Load Required No
Current - Output 2 1.8A
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 265V
Dimensions
Height 34mm
Compliance
REACH SVHC Unknown
RoHS Status RoHS Compliant
