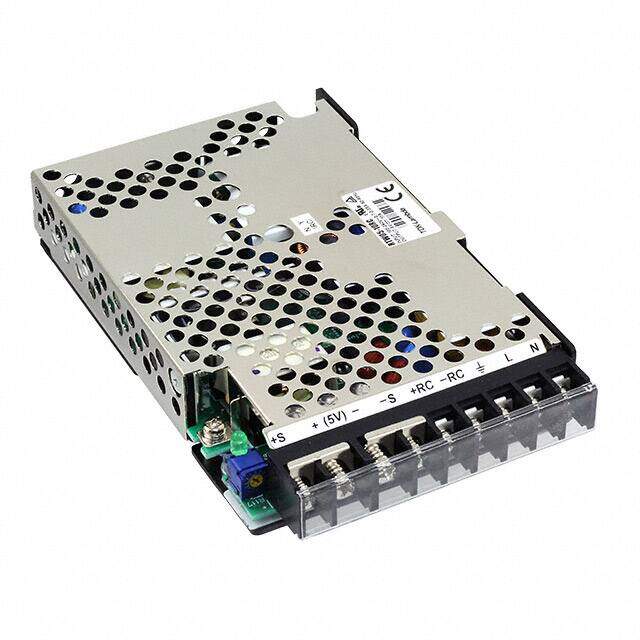

RTW156R7C
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switching Power Supplies 101W 15V 6.7A
PDF
/
Inventory: 5573
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Lifecycle Status PRODUCTION (Last Updated: 2 months ago)
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Package / Case 100
Weight 907.18474g
Technical
Operating Temperature -10°C~71°C With Derating
Published 2006
Series RTW
Size / Dimension 6.30Lx0.98W x 3.23 H 160.0mmx25.0mmx82.0mm
Feature Adjustable Output, DC Input Capable, Remote On/Off, Remote Sense, Universal Input
Part Status Not For New Designs
Type Enclosed
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Power Rating 100.5W
Max Power Dissipation 100W
Number of Outputs 1
Approval Agency CE, cURus, TUV
Efficiency 87%
Voltage - Isolation 3kV
Output Voltage 15V
Max Output Current 7A
Voltage - Input 85V~265VAC
Output Current 6.7A
Output Power 100.5W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Current - Output 1 6.7A
Max Output Power 50W
Minimum Load Required No
Ripple Voltage (Main Out) 0.03535Vrms
Dimensions
Height 82.042mm
Width 82mm
Compliance
RoHS Status RoHS Compliant
