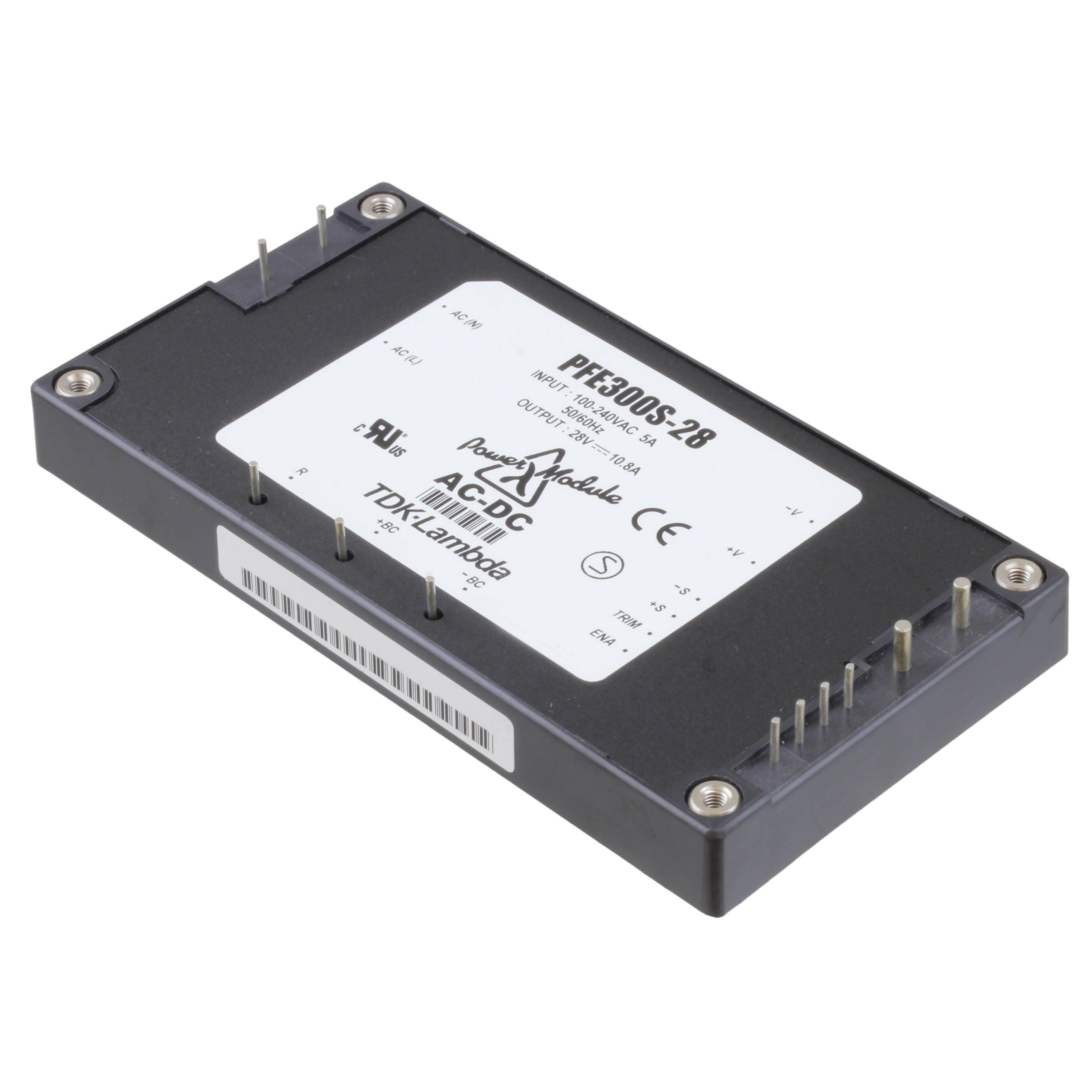

PFE300S-28
RoHS
/
Package 11-DIP Module, Full Brick
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC Power Modules 302W 28V 10.8A M3 tapped mounting
PDF
/
Inventory: 4476
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 1 month ago)
Physical
Mount Through Hole
Mounting Type Through Hole
Package / Case 11-DIP Module, Full Brick
Number of Pins 8
Weight 0.551lb 249.93g
Technical
Operating Temperature -40°C~100°C With Derating
Published 2007
Series PFE300S (300W)
Size / Dimension 4.60Lx2.40W x 0.50 H 116.8mmx61.0mmx12.7mm
Feature OCP, OTP, OVP
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Max Operating Temperature 100°C
Min Operating Temperature -40°C
Applications ITE (Commercial)
Power (Watts) 300W
Power Rating 302W
Max Power Dissipation 300W
Depth 61mm
Number of Outputs 1
Approval Agency CE, cULus
Efficiency 86%
Output Voltage 28V
Max Output Current 10.8A
Voltage - Output 1 28V
Max Current Rating 4A
Current - Output (Max) 10.8A
Voltage - Input 85V~265VAC
Output Current 10.8A
Output Power 302W
Current - Output 1 10.8A
Max Output Power 302W
Isolation Voltage 3kV
Line Regulation 56mV
Load Regulation 56mV
Dimensions
Height 12.7mm
Length 116.8mm
Width 61mm
Compliance
Radiation Hardening No
RoHS Status RoHS Compliant
