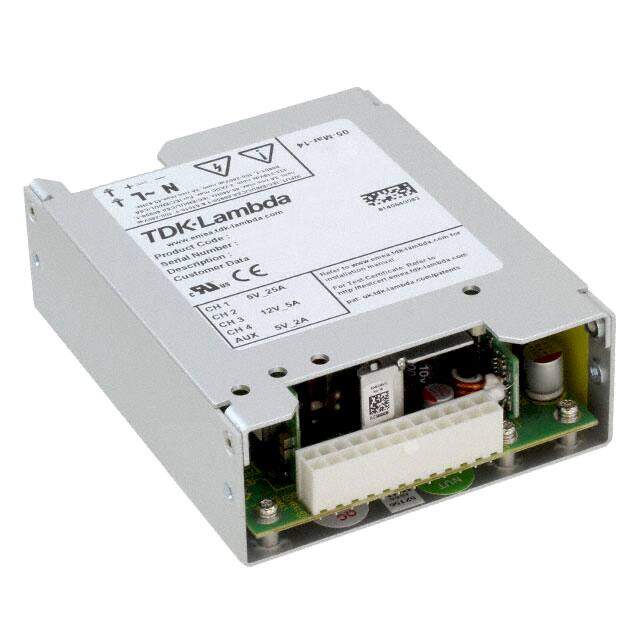

NV1452FFNC image
Favorite
NV1452FFNC image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description Switching Power Supplies 175W 5V/25A 2.7V/15A 15V/5A, -15V/1A
PDF
/
Inventory: 9808
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 8 Weeks

Physical

Mount Chassis Mount
Mounting Type Chassis Mount
Weight 14.999988g

Technical

Operating Temperature 0°C~70°C With Derating
Published 2016
Series NV175 (175-200W)
Size / Dimension 5.00Lx3.70W x 1.25 H 127.0mmx94.0mmx31.8mm
Feature Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input
Part Status Active
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature 0°C
Applications ITE (Commercial), Medical
Power (Watts) 175W
Max Power Dissipation 175W
Number of Outputs 4
Approval Agency CE
Efficiency 90%
Voltage - Isolation 4.3kV
Max Output Current 1A
Voltage - Output 1 5V
Current - Output (Max) 25A 15A 5A 1A
Voltage - Input 90V~264VAC
Voltage - Output 2 2.7V
Current - Output 1 25A
Voltage - Output 3 15V
Voltage - Output 4 -15V
Minimum Load Required No
Current - Output 2 15A
Current - Output 3 5A

Dimensions

Height 31.75mm
Length 25.4mm
Width 25.4mm

Compliance

RoHS Status RoHS Compliant
