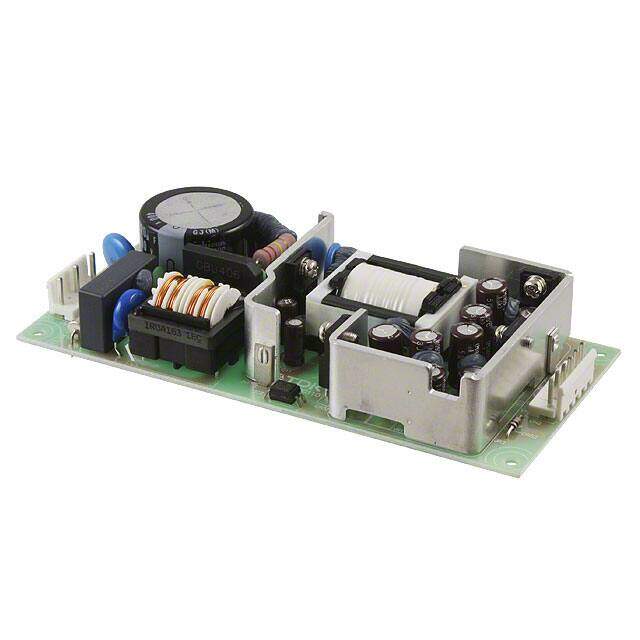

MTW15-51212/V
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switching Power Supplies 16W 5V 2A, 12V 0.3A -12V 0.2A V1 Adj
PDF
/
Buying Options
Total Price: USD $41.92
Unit Price: USD $41.924663
≥1 USD $41.924663
≥10 USD $39.551573
≥100 USD $37.312802
≥500 USD $35.200755
≥1000 USD $33.208263
Inventory: 1116
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 50.038mm
Length 127mm
Height 25.908mm
Technical
Minimum Load Required No
Voltage - Output 3 -12V
Voltage - Output 2 12V
Voltage - Input 85V~265VAC
Current - Output (Max) 2A 300mA 200mA
Voltage - Output 1 5V
Max Output Current 2A
Voltage - Isolation 3kV
Efficiency 71%
Number of Outputs 3
Max Power Dissipation 15W
Power (Watts) 15W
Applications ITE (Commercial)
Min Operating Temperature -10°C
Max Operating Temperature 70°C
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, PFC, Universal Input
Size / Dimension 5.00Lx1.97W x 1.02 H 127.0mmx50.0mmx26.0mm
Series MTW (15W)
Published 2016
Operating Temperature -10°C~70°C With Derating
Physical
Weight 149.999992g
Mounting Type Chassis Mount
Mount Chassis Mount
Supply Chain
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Factory Lead Time 17 Weeks
Alternative Model
