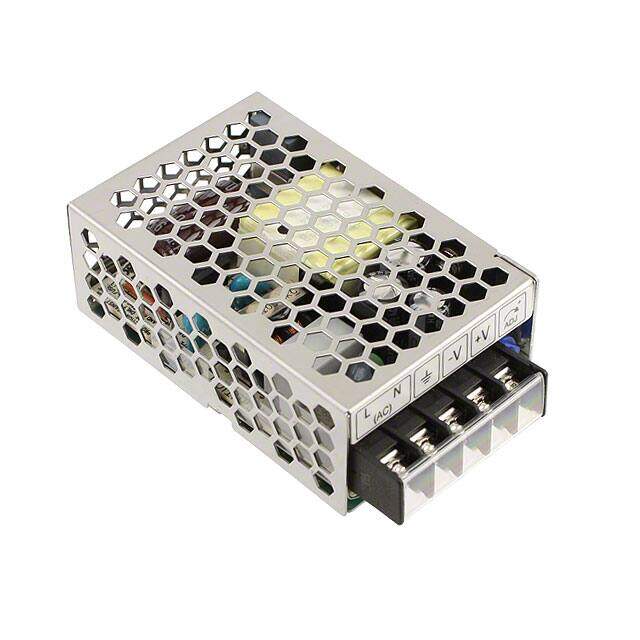

LS25-3.3
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 3.3V 25W
PDF
/
Buying Options
Total Price: USD $19.1
Unit Price: USD $19.1048
≥1 USD $19.1048
≥10 USD $18.11128
Inventory: 169
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 20 Weeks
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Number of Pins 5
Weight 249.999986g
Technical
Operating Temperature -25°C~70°C With Derating
Series LS (25W)
Size / Dimension 3.10Lx2.00W x 1.10 H 78.7mmx50.8mmx27.9mm
Feature Adjustable Output, DC Input Capable, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Max Operating Temperature 70°C
Min Operating Temperature -25°C
Applications ITE (Commercial)
Power (Watts) 25W
Power Rating 20W
Max Power Dissipation 25W
Depth 50.8mm
Number of Outputs 1
Approval Agency CE
Efficiency 75%
Voltage - Isolation 3kV
Output Voltage 3.3V
Max Output Current 6A
Voltage - Output 1 3.3V
Max Current Rating 700mA
Current - Output (Max) 6A
Voltage - Input 88V~264VAC
Output Current 6A
Output Power 20W
Min Input Voltage 88V
Max Input Voltage 264V
Current - Output 1 6A
Max Output Power 25W
Nominal Output Voltage 3.3V
Min Input Voltage (AC) 88V
Max Input Voltage (AC) 264V
Dimensions
Height 27.94mm
Length 78.74mm
Width 50.8mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
