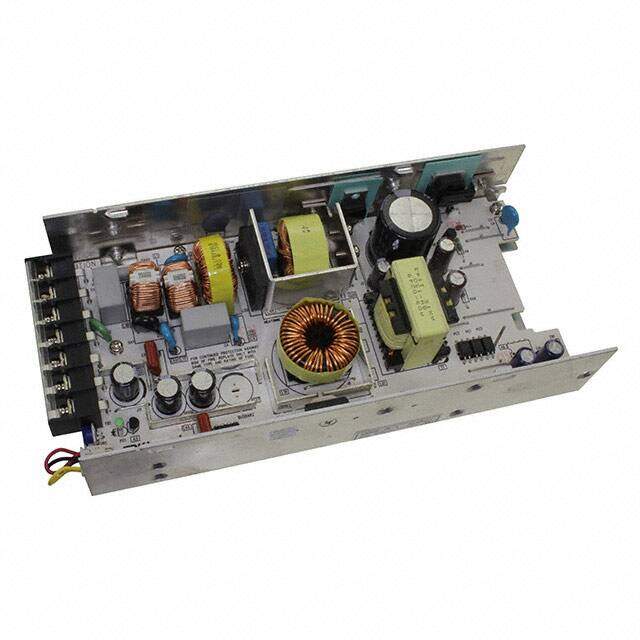

LS20036/L
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 36V 200W
PDF
/
Inventory: 7473
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
Voltage - Input 85V~264VAC
Current - Output (Max) 5.6A
Voltage - Output 1 36V
Voltage - Isolation 3kV
Efficiency 85%
Approval Agency CE
Number of Outputs 1
Power (Watts) 200W
Applications ITE (Commercial)
Type Open Frame
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature DC Input Capable, Remote On/Off, Remote Sense, Universal Input
Size / Dimension 7.83Lx3.86W x 1.61 H 199.0mmx98.0mmx41.0mm
Series LS (200W)
Published 2010
Operating Temperature -25°C~70°C With Derating
Physical
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 20 Weeks
