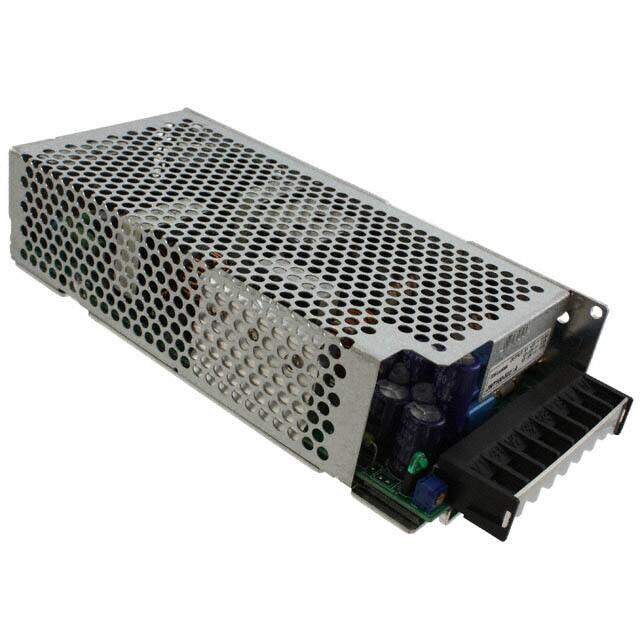

JWT100525/R image
Favorite
JWT100525/R image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description AC/DC CONVERTER 5V 12V -5V 100W
PDF
/
Inventory: 9324
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 15 Weeks

Physical

Mounting Type Chassis Mount

Technical

Operating Temperature -10°C~65°C With Derating
Published 2012
Series JWT (100W)
Size / Dimension 7.99Lx3.62W x 1.89 H 203.0mmx92.0mmx48.0mm
Feature Adjustable Output, DC Input Capable, PFC, Remote On/Off, Universal Input
Part Status Not For New Designs
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 100W
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Number of Outputs 3
Approval Agency CE
Efficiency 72%
Voltage - Isolation 3kV
Output Voltage 5V
Voltage - Output 1 5V
Current - Output (Max) 13A 5.5A 1A
Voltage - Input 85V~265VAC
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Output 2 12V
Total Power Output-Max 100W
Voltage - Output 3 -5V
Ripple Voltage (Main Out) 0.04242Vrms

Dimensions

Height 48mm
Width 92mm

Compliance

RoHS Status RoHS Compliant
