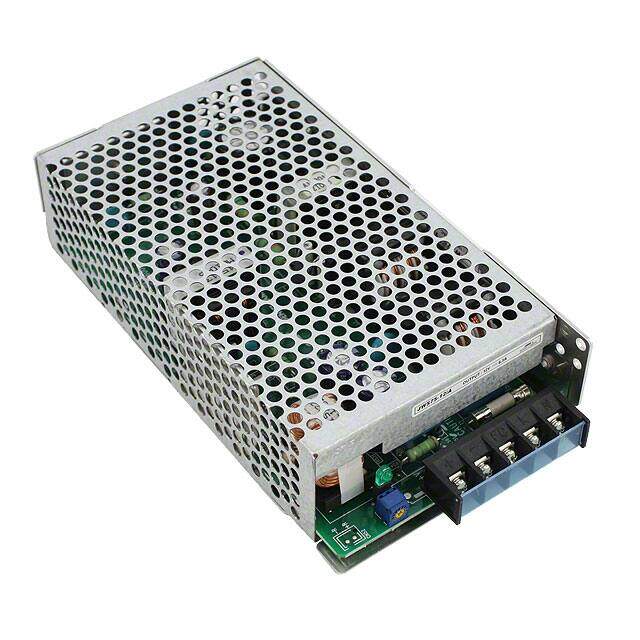

JWS7524/A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 75W
PDF
/
Inventory: 7127
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 15 Weeks
Lifecycle Status OBSOLETE (Last Updated: 2 months ago)
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Number of Pins 5
Weight 450g
Technical
Operating Temperature -10°C~60°C With Derating
Published 1999
Series JWS (75W)
Size / Dimension 6.88Lx3.62W x 1.65 H 174.8mmx91.9mmx41.9mm
Feature Adjustable Output, DC Input Capable, PFC, Universal Input
Part Status Obsolete
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 76.8W
Max Power Dissipation 75W
Depth 92mm
Number of Outputs 1
Approval Agency CE
Efficiency 79%
Voltage - Isolation 3kV
Output Voltage 24V
Max Output Current 3.2A
Operating Supply Voltage 230V
Max Supply Voltage 265V
Min Supply Voltage 85V
Voltage - Input 85V~265VAC
Output Current 3.2A
Output Power 75W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 265V
Current - Output 1 3.2A
Max Output Power 76.8W
Nominal Output Voltage 24V
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 265V
Dimensions
Height 41.91mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
