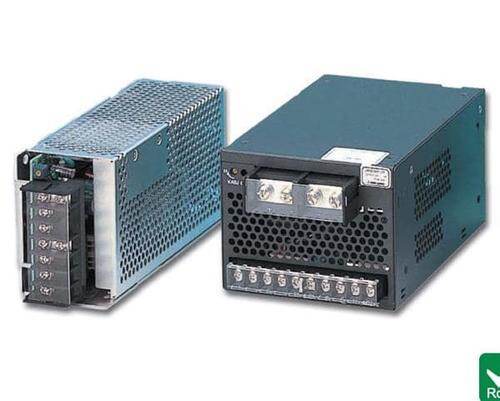

JWS503/C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Switching Power Supplies 3.3V 10A
PDF
/
Inventory: 4117
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height 12.7mm
Technical
Ripple Voltage (Main Out) 0.04242Vrms
Current - Output 1 10A
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Voltage - Input 85V~265VAC
Max Output Current 10A
Output Voltage 3.3V
Voltage - Isolation 3kV
Efficiency 65%
Approval Agency CE
Number of Outputs 1
Subcategory Power Supply Modules
Power (Watts) 50W
Applications ITE (Commercial)
Type Enclosed
Part Status Obsolete
Feature Adjustable Output, DC Input Capable, PFC, Universal Input
Size / Dimension 6.25Lx3.35W x 1.45 H 158.8mmx85.1mmx36.8mm
Series JWS (50W)
Published 2012
Operating Temperature -10°C~60°C With Derating
Physical
Number of Pins 5
Mounting Type Chassis Mount
Supply Chain
Factory Lead Time 10 Weeks
