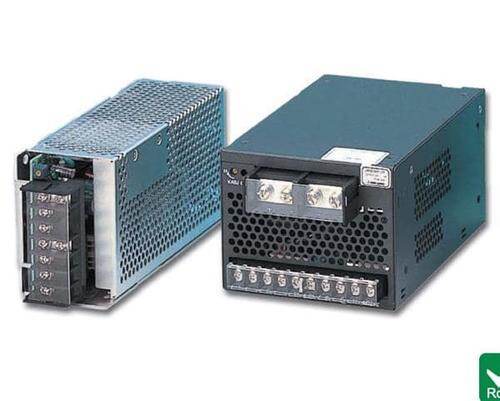

JWS1503/R image
Favorite
JWS1503/R image
Favorite
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description Switching Power Supplies 3.3V 30A
PDF
/
Inventory: 9160
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 10 Weeks

Physical

Mounting Type Chassis Mount
Number of Pins 7

Technical

Operating Temperature -10°C~60°C With Derating
Published 2012
Series JWS (150W)
Size / Dimension 7.80Lx3.62W x 2.56 H 198.1mmx91.9mmx65.0mm
Feature Adjustable Output, DC Input Capable, PFC, Remote On/Off, Remote Sense, Universal Input
Part Status Obsolete
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 150W
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Number of Outputs 1
Approval Agency CE
Efficiency 67%
Voltage - Isolation 3kV
Output Voltage 3.3V
Max Output Current 30A
Voltage - Input 85V~265VAC
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Current - Output 1 30A
Ripple Voltage (Main Out) 0.04242Vrms

Dimensions

Height 8.382mm

Compliance

RoHS Status RoHS Compliant
