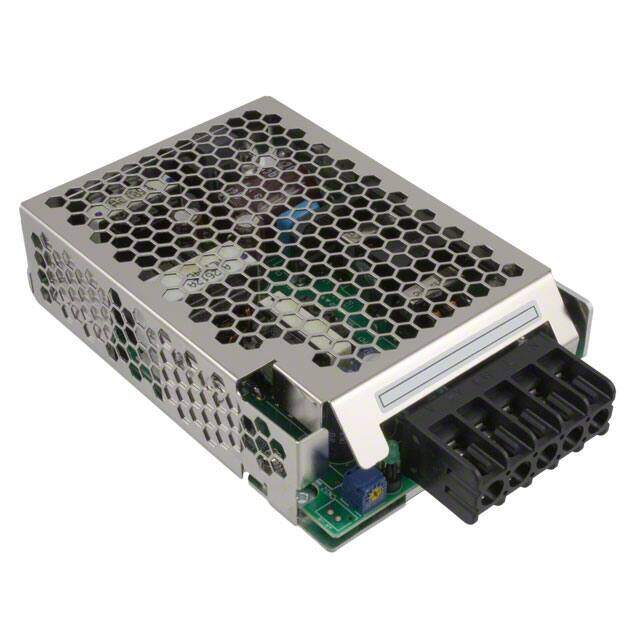

HWS50-12/A
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 50W
PDF
/
Inventory: 1121
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Lifecycle Status OBSOLETE (Last Updated: 1 month ago)
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Number of Pins 5
Weight 229.999993g
Technical
Operating Temperature -10°C~70°C With Derating
Published 2005
Series HWS (50W)
Size / Dimension 4.72Lx1.24W x 3.23 H 119.9mmx31.5mmx82.0mm
Feature Adjustable Output, DC Input Capable, Universal Input
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 6
ECCN Code EAR99
Type Enclosed
Applications ITE (Commercial)
Subcategory Power Supply Modules
Power Rating 50W
Max Power Dissipation 50W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
Depth 31.5mm
Current Rating 4.3A
Frequency 63Hz
JESD-30 Code R-XXMA-X6
Number of Outputs 1
Approval Agency CE
Efficiency 83%
Voltage - Isolation 3kV
Output Voltage 12V
Max Output Current 4.3A
Input Voltage-Nom 100V
Trim/Adjustable Output YES
Voltage - Input 85V~265VAC
Output Current 4.3A
Output Power 50W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Min Input Voltage 85V
Max Input Voltage 265V
Current - Output 1 4.3A
Max Output Power 50W
Nominal Output Voltage 12V
Min Input Voltage (AC) 85V
Max Input Voltage (AC) 265V
Dimensions
Height 82.042mm
Width 26.42mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
Lead Free Lead Free
