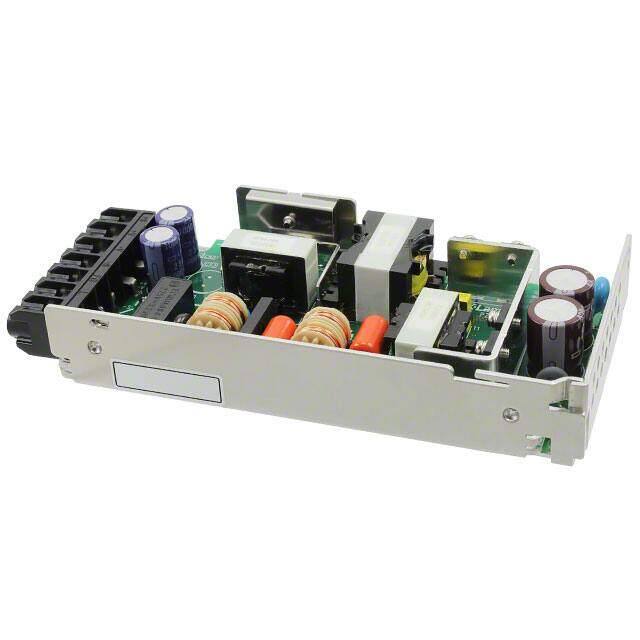

HWS100A12/ME
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 100W
PDF
/
Inventory: 3722
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 17 Weeks
Lifecycle Status PRODUCTION (Last Updated: 1 month ago)
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Weight 469.921695g
Technical
Operating Temperature -10°C~70°C With Derating
Published 2014
Series HWS/ME (100W)
Size / Dimension 6.30Lx3.23W x 1.30 H 160.0mmx82.0mmx33.0mm
Feature Adjustable Output, DC Input Capable, PFC, Remote Sense, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Open Frame
Applications ITE (Commercial), Medical
Max Power Dissipation 100W
Number of Outputs 1
Approval Agency CE
Efficiency 88%
Voltage - Isolation 3kV
Max Output Current 8.5A
Voltage - Output 1 12V
Voltage - Input 85V~265VAC
Output Power 102W
Current - Output 1 8.5A
Dimensions
Height 33.02mm
Compliance
RoHS Status RoHS Compliant
