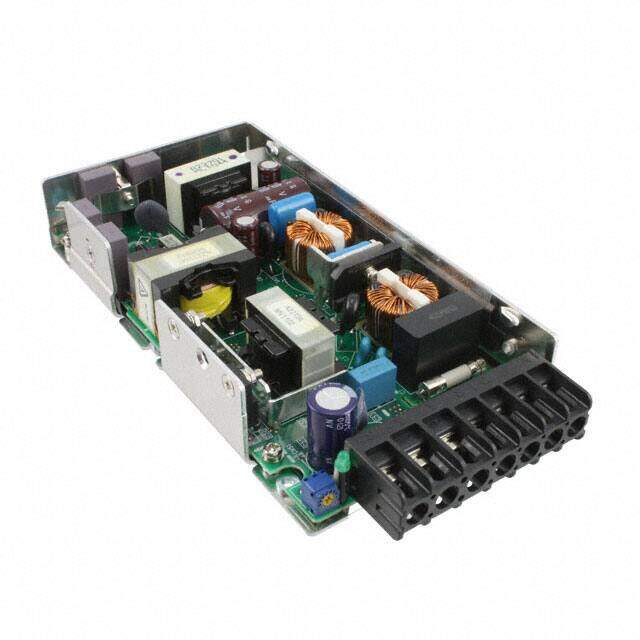

HWS100-12/HD
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 12V 100W
PDF
/
Inventory: 8768
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Chassis Mount
Technical
Operating Temperature -40°C~71°C With Derating
Published 2006
Series HWS/HD (100W)
Size / Dimension 6.30Lx1.10W x 3.23 H 160.0mmx28.0mmx82.0mm
Feature Adjustable Output, DC Input Capable, Remote Sense, Universal Input
Part Status Obsolete
Moisture Sensitivity Level (MSL) Not Applicable
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 100W
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Reach Compliance Code compliant
Number of Outputs 1
Approval Agency CE
Efficiency 86%
Voltage - Isolation 3kV
Output Voltage 12V
Voltage - Output 1 12V
Current - Output (Max) 8.5A
Voltage - Input 85V~265VAC
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Ripple Voltage (Main Out) 0.05303Vrms
Dimensions
Height 82.04mm
Width 27.94mm
Compliance
RoHS Status RoHS Compliant
