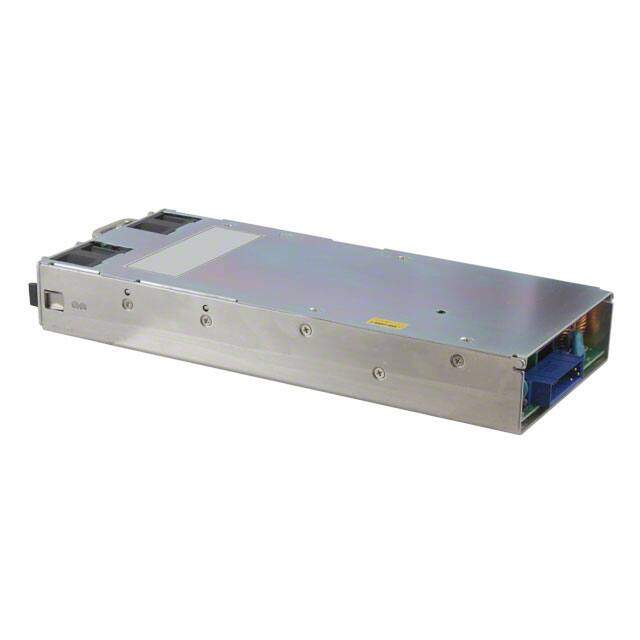

FPS100012/S
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
Rack Mount Power Supplies 864W 12V 72A
PDF
/
Inventory: 1442
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Weight 1.999889kg
Number of Pins 24
Mounting Type Rack Mount
Mount Rack
Technical
Operating Temperature 0°C~60°C With Derating
Published 2007
Series FPS1000 (1000W)
Size / Dimension 11.42Lx5.00W x 1.61 H 290.0mmx127.0mmx41.0mm
Feature Adjustable Output, Hot Swappable, I2C? Interface, Load Sharing, PFC, Remote Sense, Standby Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Front End
Max Operating Temperature 60°C
Min Operating Temperature 0°C
Applications ITE (Commercial)
Power (Watts) 864W
Max Power Dissipation 864W
Number of Outputs 1
Efficiency 83%
Voltage - Isolation 3kV
Output Voltage 24V
Max Output Current 72A
Voltage - Output 1 12V
Current - Output (Max) 72A
Max Output Power 864W
Current - Output 1 72A
Voltage - Input 85V~265VAC 120V~360VDC
Supply Chain
Factory Lead Time 20 Weeks
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 25.4mm
Length 50.8mm
Height 40.894mm
