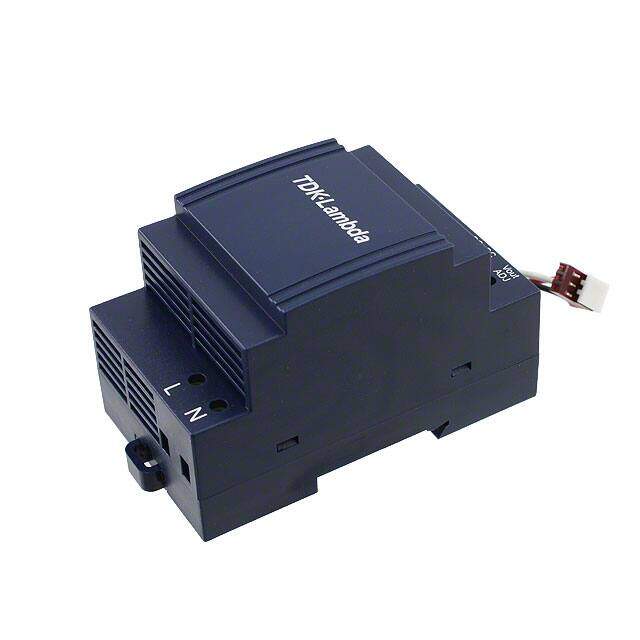

DSP30-24/277A2
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 30W
PDF
/
Buying Options
Total Price: USD $53.69
Unit Price: USD $53.6888
≥1 USD $53.6888
≥10 USD $48.7696
≥100 USD $44.7216
≥500 USD $43.637088
Inventory: 2597
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type DIN Rail
Technical
Operating Temperature -25°C~71°C With Derating
Series DSP (7.5-100W)
Size / Dimension 2.19Lx2.09W x 3.76 H 55.6mmx53.1mmx95.5mm
Feature Adjustable Output, DC Input Capable, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) Not Applicable
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 30W
Number of Outputs 1
Approval Agency CE
Efficiency 87%
Voltage - Isolation 3kV
Voltage - Output 1 24V
Current - Output (Max) 1.25A
Voltage - Input 90V~304VAC 120V~370VDC
Compliance
RoHS Status RoHS Compliant
