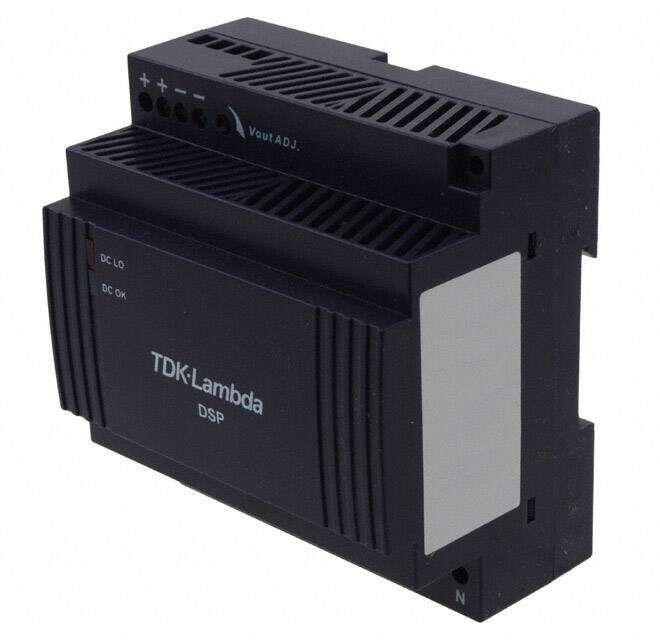

DSP100-15
RoHS
RoHS compliant
RoHS compliantPackage 100
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
TDK LAMBDA DSP100-15 AC/DC DIN Rail Power Supply, Class II, Adjustable, Fixed, 90 V, 264 V, 75 W, 15 V, 5 A
PDF
/
Buying Options
Total Price: USD $69.36
Unit Price: USD $69.3616
≥1 USD $69.3616
≥10 USD $58.72856
≥100 USD $55.176
Inventory: 93
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Radiation Hardening No
Dimensions
Height 91mm
Technical
Min Input Voltage (AC) 90V
Nominal Output Voltage 15V
Max Output Power 75W
Current - Output 1 5A
Max Input Voltage 264V
Min Input Voltage 90V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Output Power 75W
Output Current 5A
Voltage - Input 90V~264VAC 120V~370VDC
Max Voltage Rating (AC) 264V
Max Output Current 5A
Output Voltage 15V
Voltage - Isolation 3kV
Efficiency 85%
Approval Agency CE
Number of Outputs 1
Depth 55.6mm
Max Power Dissipation 100W
Power Rating 75W
Subcategory Power Supply Modules
Applications ITE (Commercial)
Type Enclosed
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, Universal Input
Size / Dimension 2.19Lx3.54W x 3.58 H 55.6mmx89.9mmx90.9mm
Series DSP (7.5-100W)
Published 2007
Operating Temperature -25°C~71°C With Derating
Physical
Weight 320.000005g
Package / Case 100
Mounting Type DIN Rail
Mount DIN Rail, Panel
Supply Chain
Factory Lead Time 20 Weeks
