DPP100-24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description

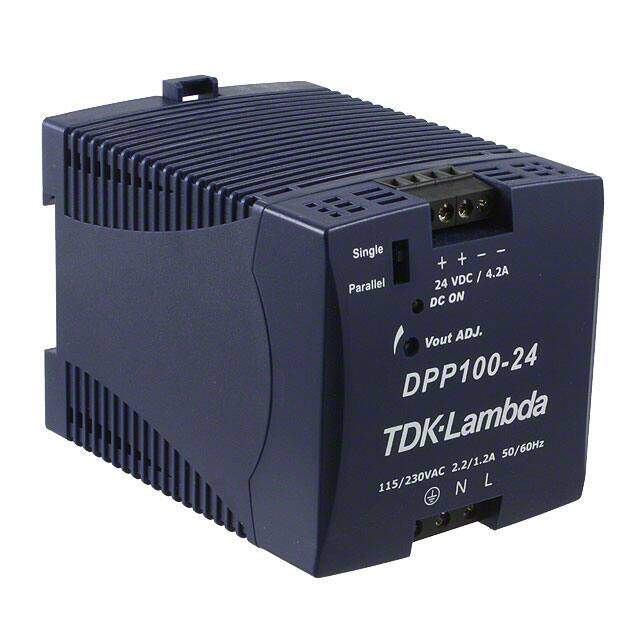

TDK LAMBDA DPP100-24 AC/DC DIN Rail Power Supply, Class II, Adjustable, Fixed, 1 Output, 85 VAC, 264 VAC, 100 W, 24 VDC
PDF
/
Buying Options
Total Price: USD $86.95
Unit Price: USD $86.9528
≥1 USD $86.9528
≥10 USD $81.312
≥100 USD $77.149952
≥500 USD $70.441712
Inventory: 144
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC No SVHC
Dimensions
Height 74.93mm
Technical
Max Input Voltage (AC) 264V
Min Input Voltage (AC) 85V
Nominal Output Voltage 24V
Max Output Power 100W
Min Output Voltage 24V
Current - Output 1 4.2A
Max Input Voltage 264V
Min Input Voltage 85V
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE
Max Output Voltage 24V
Output Power 100W
Output Current 4.2A
Voltage - Input 85V~132VAC 176V~264VAC
Max Current Rating 1.2A
Max Voltage Rating (AC) 264V
Trim/Adjustable Output YES
Input Voltage-Nom 115V
Max Output Current 4.2A
Output Voltage 24V
Voltage - Isolation 3kV
Efficiency 87%
Approval Agency CE
Number of Outputs 1
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 63Hz
Current Rating 4.2A
Depth 96.7mm
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 100W
Voltage - Rated DC 24V
Power Rating 100W
Subcategory Power Supply Modules
Voltage - Rated 24V
Applications ITE (Commercial)
Type Enclosed
Number of Terminations 7
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Adjustable Output, DC Input Capable, Load Sharing
Size / Dimension 3.81Lx2.86W x 2.95 H 96.8mmx72.6mmx74.9mm
Series DPP (15-100W)
Published 2007
Operating Temperature -10°C~71°C With Derating
Physical
Weight 389.999995g
Number of Pins 7
Mounting Type DIN Rail
Mount DIN Rail
Supply Chain
Factory Lead Time 20 Weeks
