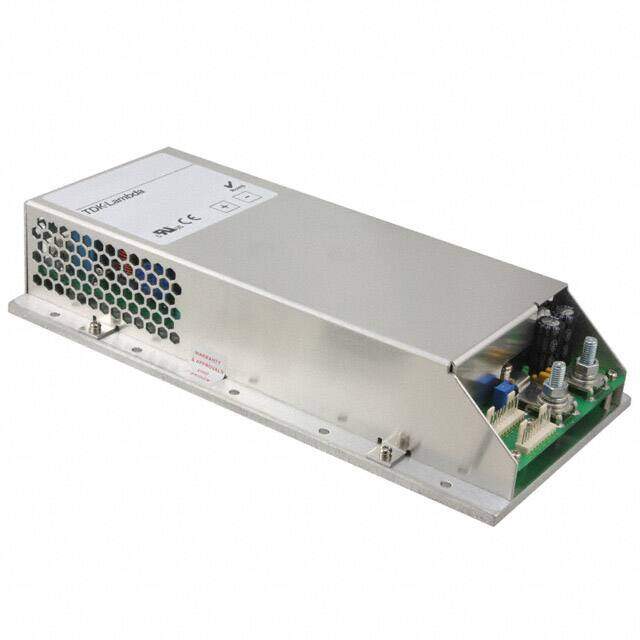

CPFE500F-28-NLC
RoHS
/
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 28V 500W
PDF
/
Inventory: 1802
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 19 Weeks
Physical
Mount Chassis Mount, Panel
Mounting Type Chassis Mount
Number of Pins 10
Weight 290.000001g
Technical
Operating Temperature -40°C~85°C
Published 2011
Series CPFE500F (500W)
Size / Dimension 10.63Lx4.96W x 2.15 H 264.0mmx126.0mmx54.5mm
Feature Adjustable Output, Baseplate, Load Sharing, Remote On/Off, Remote Sense, Standby Output, Universal Input
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed, Conformal Coated
Applications ITE (Commercial)
Additional Feature REMOTE SHUTDOWN
Subcategory Power Supply Modules
Power Rating 500W
Max Power Dissipation 500W
Number of Outputs 1
Approval Agency CE
Efficiency 85%
Voltage - Isolation 4.242kV
Output Voltage 28V
Max Output Current 18A
Voltage - Input 90V~265VAC
Output Current 18A
Output Power 504W
Protections OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE; THERMAL
Min Input Voltage 90V
Max Input Voltage 265V
Current - Output 1 18A
Max Output Power 504W
Nominal Output Voltage 28V
Dimensions
Height 54.5mm
Length 264mm
Compliance
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status RoHS Compliant
