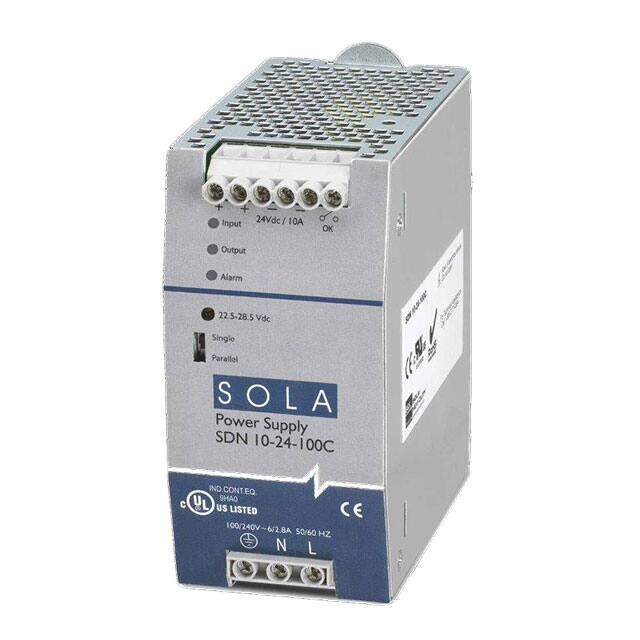

SDN10-24-100C
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
240W 24V DIN S/P 115/230V IN IEC
PDF
/
Buying Options
Total Price: USD $427.92
Unit Price: USD $427.9176
≥1 USD $427.9176
≥10 USD $420.27392
Inventory: 104
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
REACH SVHC Unknown
Dimensions
Width 59.944mm
Length 116mm
Height 123.952mm
Technical
Min Input Voltage (AC) 85V
Max Output Power 240W
Current - Output 1 10A
Max Input Voltage 264V
Min Input Voltage 85V
Output Power 240W
Output Current 10A
Voltage - Input 85V~264VAC 90V~375VDC
Current - Output (Max) 10A
Max Voltage Rating (AC) 264V
Voltage - Output 1 24V
Max Output Current 10A
Output Voltage 24V
Efficiency 90%
Approval Agency CE, cULus, cURus, EAC
Number of Outputs 1
Depth 115.57mm
Power Rating 240W
Power (Watts) 240W
Applications Industrial, ITE (Commercial)
Min Operating Temperature -25°C
Max Operating Temperature 60°C
Type Enclosed
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Adjustable Output, IP20, Universal Input
Size / Dimension 4.36Lx2.36W x 4.85 H 110.7mmx59.9mmx123.2mm
Series SDN-C
Published 2011
Operating Temperature -40°C~70°C With Derating
Physical
Mounting Type DIN Rail
Mount DIN Rail
