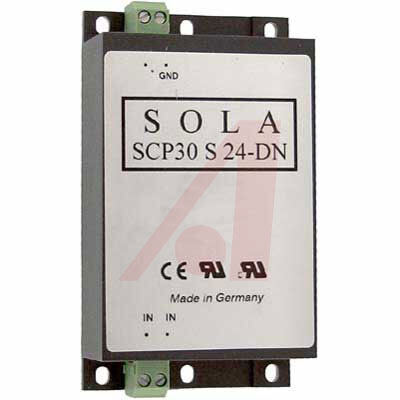

SCP30T512-DN
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
30W 5/12/12V SW PWR SPLY DIN
PDF
/
Buying Options
Total Price: USD $217.35
Unit Price: USD $217.350576
≥1 USD $217.350576
≥10 USD $205.04772
≥100 USD $193.441237
≥500 USD $182.49174
≥1000 USD $172.162016
Inventory: 970
Minimum: 1
-
+
Technical Details
Physical
Mount DIN Rail, Panel
Mounting Type DIN Rail
Number of Pins 7
Weight 340.194277g
Technical
Operating Temperature -25°C~65°C
Published 2002
Series SCP (30W)
Size / Dimension 2.55Lx1.29W x 4.71 H 65.0mmx33.0mmx120.0mm
Feature IP20, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Type Enclosed
Applications ITE (Commercial)
Power (Watts) 29W
Power Rating 30W
Current Rating 600mA
Number of Outputs 3
Approval Agency CE, cURus
Efficiency 68%
Output Voltage 5V
Max Output Current 3A
Max Voltage Rating (AC) 264V
Current - Output (Max) 3A 600mA 600mA
Voltage - Input 85V~264VAC 100V~375VDC
Output Current 3A
Output Power 30W
Voltage - Output 2 -12V
Min Input Voltage 85V
Max Input Voltage 264V
Current - Output 1 3A
Voltage - Output 3 12V
Max Output Power 30W
Minimum Load Required Yes
Nominal Output Voltage 5V
Current - Output 2 600mA
Switching Frequency 100kHz
Min Input Voltage (AC) 85V
Current - Output 3 600mA
Dimensions
Height 120mm
Compliance
Radiation Hardening No
REACH SVHC Unknown
RoHS Status RoHS Compliant
