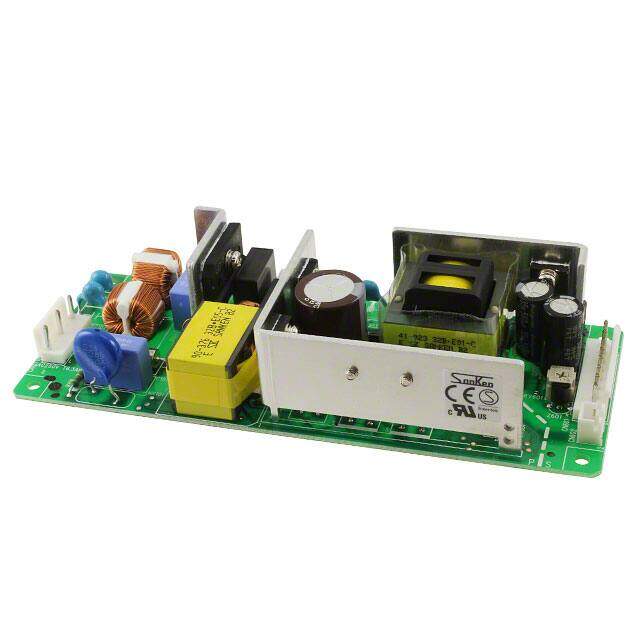

SWF100P-24
RoHS
RoHS compliant
RoHS compliantPackage /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description
AC/DC CONVERTER 24V 100W
PDF
/
Inventory: 8749
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mount Chassis Mount
Mounting Type Chassis Mount
Technical
Operating Temperature -10°C~70°C
Published 2013
Series SWF100P (100W)
Size / Dimension 6.10Lx2.44W x 1.30 H 155.0mmx62.0mmx33.0mm
Feature Adjustable Output, Universal Input
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Type Open Frame
Applications ITE (Commercial)
Power (Watts) 100W
Max Power Dissipation 100W
Technology HYBRID
Terminal Position UNSPECIFIED
Terminal Form UNSPECIFIED
Number of Functions 1
JESD-30 Code X-XXMA-X
Number of Outputs 1
Approval Agency CE, cURus
Efficiency 89%
Voltage - Isolation 3kV
Output Voltage 24V
Max Output Current 4.2A
Voltage - Output 1 24V
Input Voltage-Nom 100V
Voltage - Input 85V~264VAC
Dimensions
Height 33.02mm
Compliance
RoHS Status RoHS Compliant
Lead Free Lead Free
