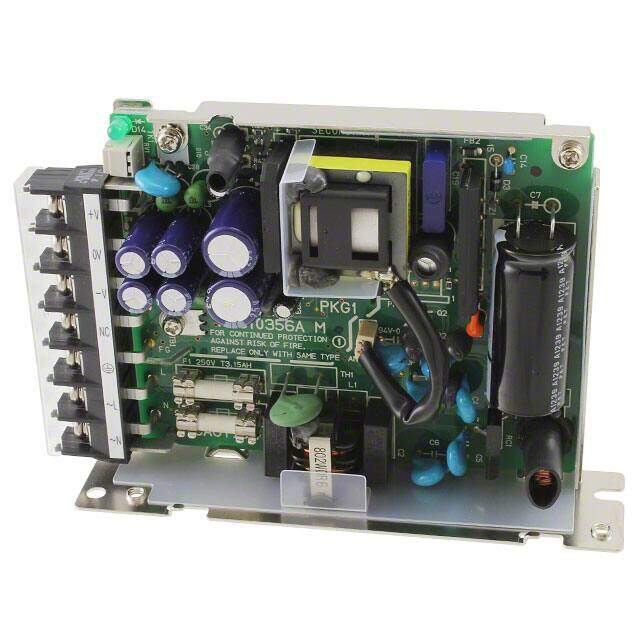

HWB015D-15 image
Favorite
HWB015D-15 image
Favorite

HWB015D-15

Sanken
RoHS
RoHS RoHS compliant
Package /
Category Power Supplies - External/Internal (Off-Board) / AC DC Converters
Description AC/DC CONVERTER +/-15V 15W
PDF
/
Inventory: 8118
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

Lead Free Lead Free
RoHS Status RoHS Compliant

Dimensions

Height 34.036mm

Technical

Total Power Output-Max 19.5W
Voltage - Output 2 -15V
Voltage - Input 85V~264VAC
Current - Output (Max) 650mA 650mA
Input Voltage-Nom 100V
Voltage - Output 1 15V
Max Output Current 650mA
Output Voltage 15V
Efficiency 75%
Approval Agency CE, cURus, GS
Number of Outputs 2
JESD-30 Code X-XXMA-X
Number of Functions 1
Terminal Form UNSPECIFIED
Terminal Position UNSPECIFIED
Technology HYBRID
Max Power Dissipation 15W
Additional Feature NEGETIVE OUTPUT VOLTAGE IS -15
Applications ITE (Commercial)
Type Open Frame
ECCN Code EAR99
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Load Sharing, Universal Input
Size / Dimension 4.33Lx3.62W x 1.34 H 110.0mmx92.0mmx34.0mm
Series HWB (15W)
Published 2013
Operating Temperature -10°C~60°C

Physical

Mounting Type Chassis Mount
Mount Chassis Mount

Supply Chain

Factory Lead Time 14 Weeks
