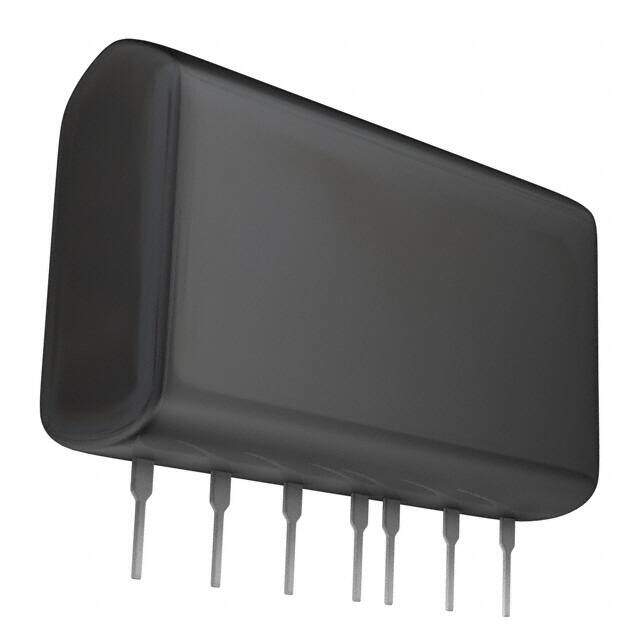

BP5062-5
RoHS
RoHS compliant
RoHS compliantPackage 12-SIP Module, 7 Leads
Category Power Supplies - Board Mount / AC DC Converters
Description
AC/DC CONVERTER -5V 3W
PDF
/
Inventory: 8465
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status ROHS3 Compliant
Dimensions
Height 21.59mm
Technical
Load Regulation 70mV
Line Regulation 50mV
Total Power Output-Max 2.65W
Voltage - Input 80V~120VAC
Trim/Adjustable Output NO
Input Voltage-Nom -141V
Voltage - Output 1 -5V
Max Output Current 500mA
Output Voltage -5.3V
Efficiency 71%
Qualification Status Not Qualified
Number of Outputs 1
JESD-30 Code R-XSMA-T7
Pin Count 12
Time@Peak Reflow Temperature-Max (s) 10
Terminal Pitch 2.54mm
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position SINGLE
Technology HYBRID
Max Power Dissipation 3W
Subcategory Power Supply Modules
Power (Watts) 3W
Applications ITE (Commercial)
Terminal Finish Tin/Copper (Sn/Cu)
Type Enclosed
ECCN Code EAR99
Number of Terminations 7
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e2
Size / Dimension 1.36Lx0.39W x 0.85 H 34.5mmx9.9mmx21.5mm
Series BP5062
Published 2002
Operating Temperature -20°C~80°C With Derating
Physical
Package / Case 12-SIP Module, 7 Leads
Mounting Type Through Hole
Mount Through Hole
